SME2014UWDC05
ObsoleteBivar Inc.

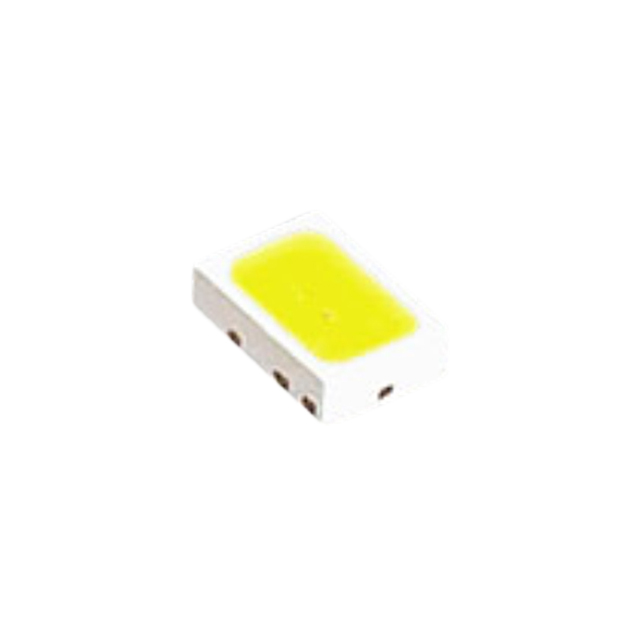

LED SM2014 COOL WHITE 5665K 2014
SME2014UWDC05
ObsoleteBivar Inc.
LED SM2014 COOL WHITE 5665K 2014
Description
General part information
SME2014UWDC05
LED Lighting SM2014 White, Cool 5665K 3.2V 150mA 110° 0805 (2015 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SME2014UWDC05 |
|---|---|
| CCT (K) | 5665 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 80 |
| Current - Test | 150 mA |
| Flux | 52 lm |
| Height - Seated (Max) | 0.026 in |
| Lumens/Watt | 108 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2015 Metric) |
| Package Name | 2014 |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.055 in |
| Supplier Device Package | 2014 |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
