L523GD-H400MA
ActiveAmerican Opto Plus LED

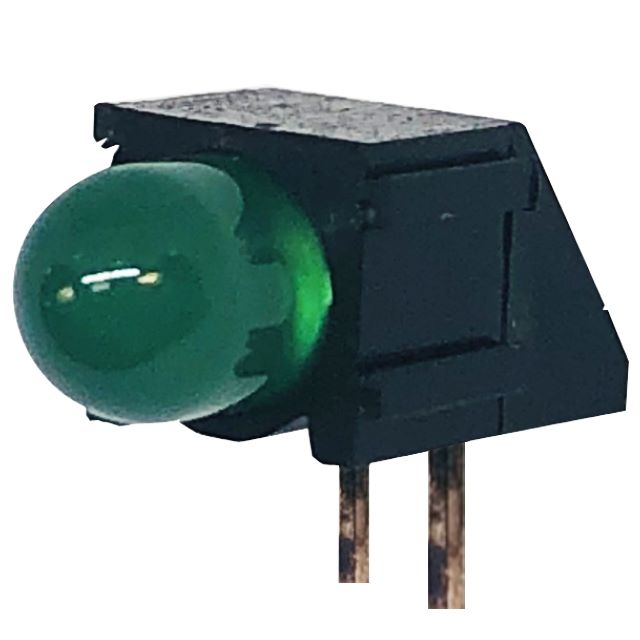

LED CBI 5MM GRN THROUGH HOLE
L523GD-H400MA
ActiveAmerican Opto Plus LED
LED CBI 5MM GRN THROUGH HOLE
Description
General part information
L523GD-H400MA
LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused 2.1V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | L523GD-H400MA |
|---|---|
| Color | Green |
| Configuration | Single |
| Current | 20 mA |
| Lens Size | 5 mm |
| Lens Size (Code) | T-1 3/4 |
| Lens Style | Round, Domed Top |
| Lens Type | Diffused |
| Millicandela Rating | 15 mcd |
| Mounting Type | Through Hole |
| Viewing Angle | 60 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 565 nm |
