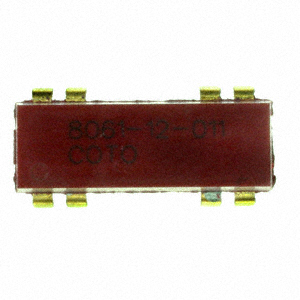

8061-12-011
ObsoleteCOTO TECHNOLOGY
RELAY REED SPDT 250MA 12V
8061-12-011
ObsoleteCOTO TECHNOLOGY
RELAY REED SPDT 250MA 12V
Description
General part information
8061-12-011
RELAY REED SPDT 250MA 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | 8061-12-011 |
|---|---|
| Coil Current | 24 mA |
| Coil Resistance | 500 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | C, 1, SPDT, Form |
| Contact Rating (Current) | 250 mA |
| Features | Diode |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 1 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Release Time | 1.5 ms |
| Switching Voltage AC (Max) | 100 VAC |
| Switching Voltage DC (Max) | 100 VDC |
| Termination Style | J Lead |
