DLC0430BBM07RT-3
ActiveDLC Display Co.,Ltd
GRAPHIC DISPLAY TFT RGB 4.3"
DLC0430BBM07RT-3
ActiveDLC Display Co.,Ltd
GRAPHIC DISPLAY TFT RGB 4.3"
Description
General part information
DLC0430BBM07RT-3

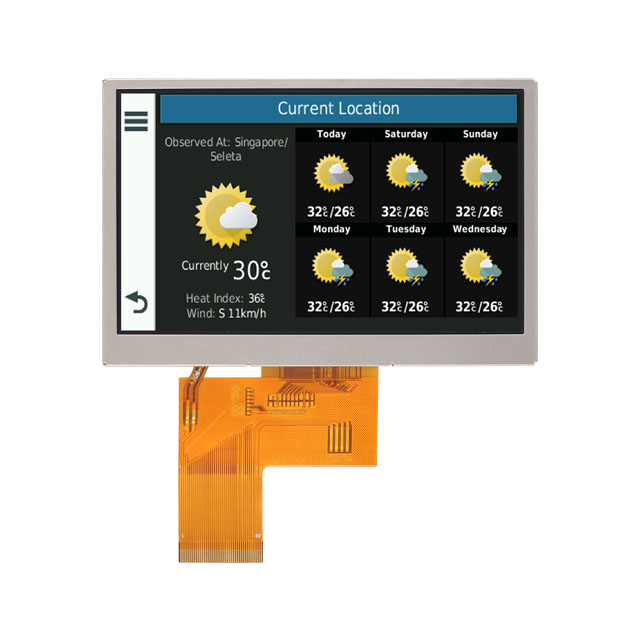

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 4.3" (109.22mm) 480 x 272
Technical Specifications
Parameters and characteristics for this part
| Specification | DLC0430BBM07RT-3 |
|---|---|
| Backlight | LED |
| Controller Type | ST7282 |
| Diagonal Screen Size | 4.3 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch Height | 0.2 mm |
| Dot Pitch Width | 0.2 mm |
| Dot Pixels (Horizontal) | 480 pixels |
| Dot Pixels (Vertical) | 272 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | Parallel |
| Interface Data Width | 24 Bit |
| Touchscreen | Non-Touch |
| Viewing Area Height | 57.86 mm |
| Viewing Area Width | 98.04 mm |
