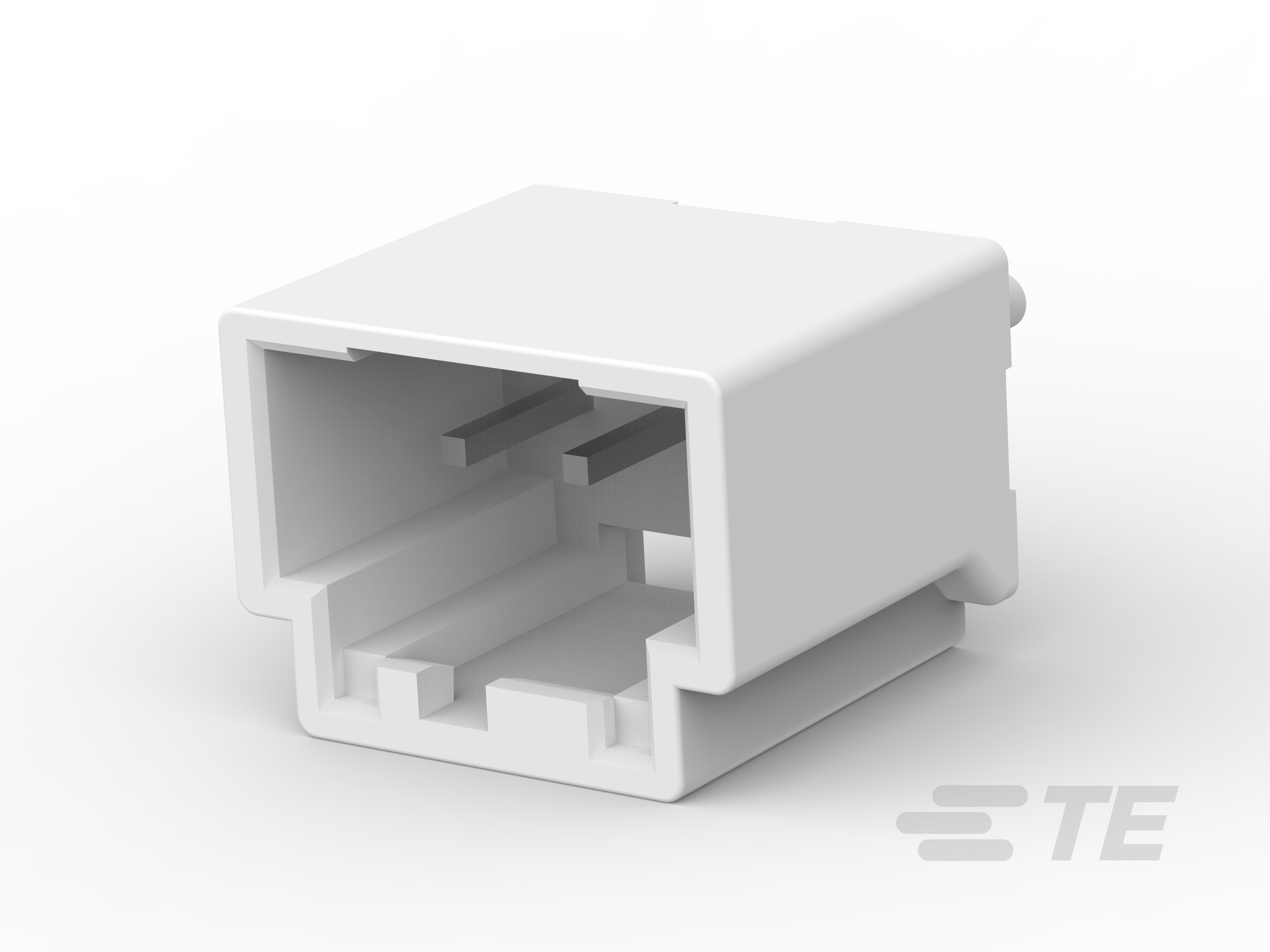

NEW GI CONN2.5 HDR ASMBLY 3P NC D1.0-3-1971798-1

3-1971798-1

Active
TE Connectivity AMP Connectors

NEW GI CONN2.5 HDR ASMBLY 3P NC D1.0

Find alt
NEW GI CONN2.5 HDR ASMBLY 3P NC D1.0-3-1971798-1

3-1971798-1

Active
TE Connectivity AMP Connectors

NEW GI CONN2.5 HDR ASMBLY 3P NC D1.0

Find alt

Description

General part information

GRACE INERTIA 2.5 Series

PCB Mount Header, Vertical, Wire-to-Board, 3 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, GRACE INERTIA 2.5

Technical Specifications

Parameters and characteristics for this part

Specification3-1971798-1
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Fastening TypeLatch Holder
FeaturesBoard Guide
Insulation ColorNatural
Insulation Height0.346 in
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions3
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-30 °C
Pitch - Mating0.098 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationKinked Pin, Solder
Voltage Rating50 V
