HA2-2541-2
ActiveRochester Electronics, LLC
IC OPAMP GP 1 CIRCUIT TO99-8
HA2-2541-2
ActiveRochester Electronics, LLC
IC OPAMP GP 1 CIRCUIT TO99-8
Description
General part information
HA2-2541-2
General Purpose Amplifier 1 Circuit TO-99-8
Technical Specifications
Parameters and characteristics for this part
| Specification | HA2-2541-2 |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 11 µA |
| Current - Output / Channel | 15 mA |
| Current - Supply | 29 mA |
| Gain Bandwidth Product | 40 MHz |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |

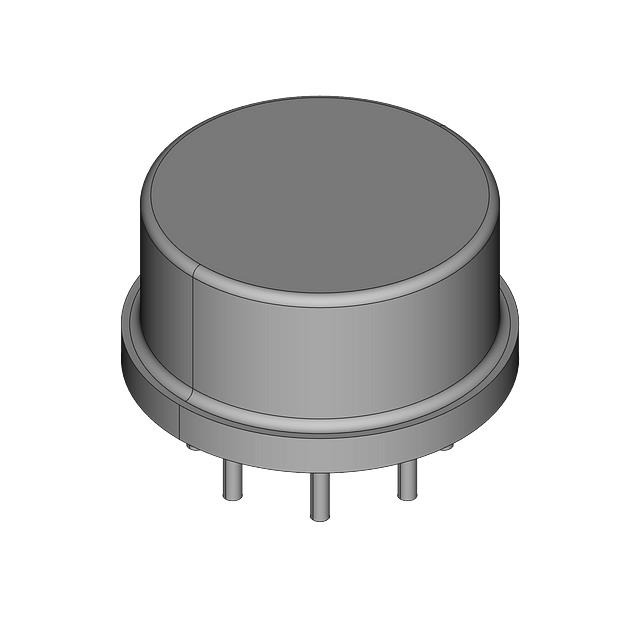

| Package / Case | TO-99-8 Metal Can |
| Package Name | TO-99-8 |
| Slew Rate | 250 V/µs |
| Voltage - Input Offset | 800 µV |
| Voltage - Supply Span (Max) | 35 V |
| Voltage - Supply Span (Min) | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
