QBSLDO560GR
ActiveQT Brightek (QTB)

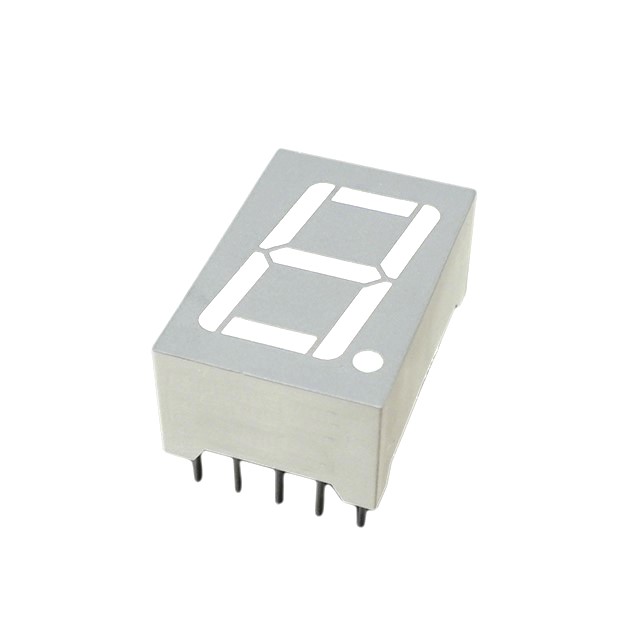

DISPLAY 7SEG 0.56"SGL ORG 10DIP
QBSLDO560GR
ActiveQT Brightek (QTB)
DISPLAY 7SEG 0.56"SGL ORG 10DIP
Description
General part information
QBSLDO560GR
Display Modules - LED Character and Numeric Orange 7-Segment 1 Character Common Anode 2V 20mA 0.748" H x 0.496" W x 0.325" D (19.00mm x 12.60mm x 8.25mm) 10-DIP (0.600", 15.24mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | QBSLDO560GR |
|---|---|
| Color | Orange |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.56 in |
| Display Type | 7-Segment |
| Millicandela Rating | 30 mcd |
| Number of Characters | 1 |
| Package Length | 0.6 in |
| Package Name | 10-DIP |
| Power Dissipation (Max) | 48 mW |
| Size / Dimension Depth | 0.325 in |
| Size / Dimension Height | 0.748 in |
| Size / Dimension Width | 0.496 in |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 610 nm |
