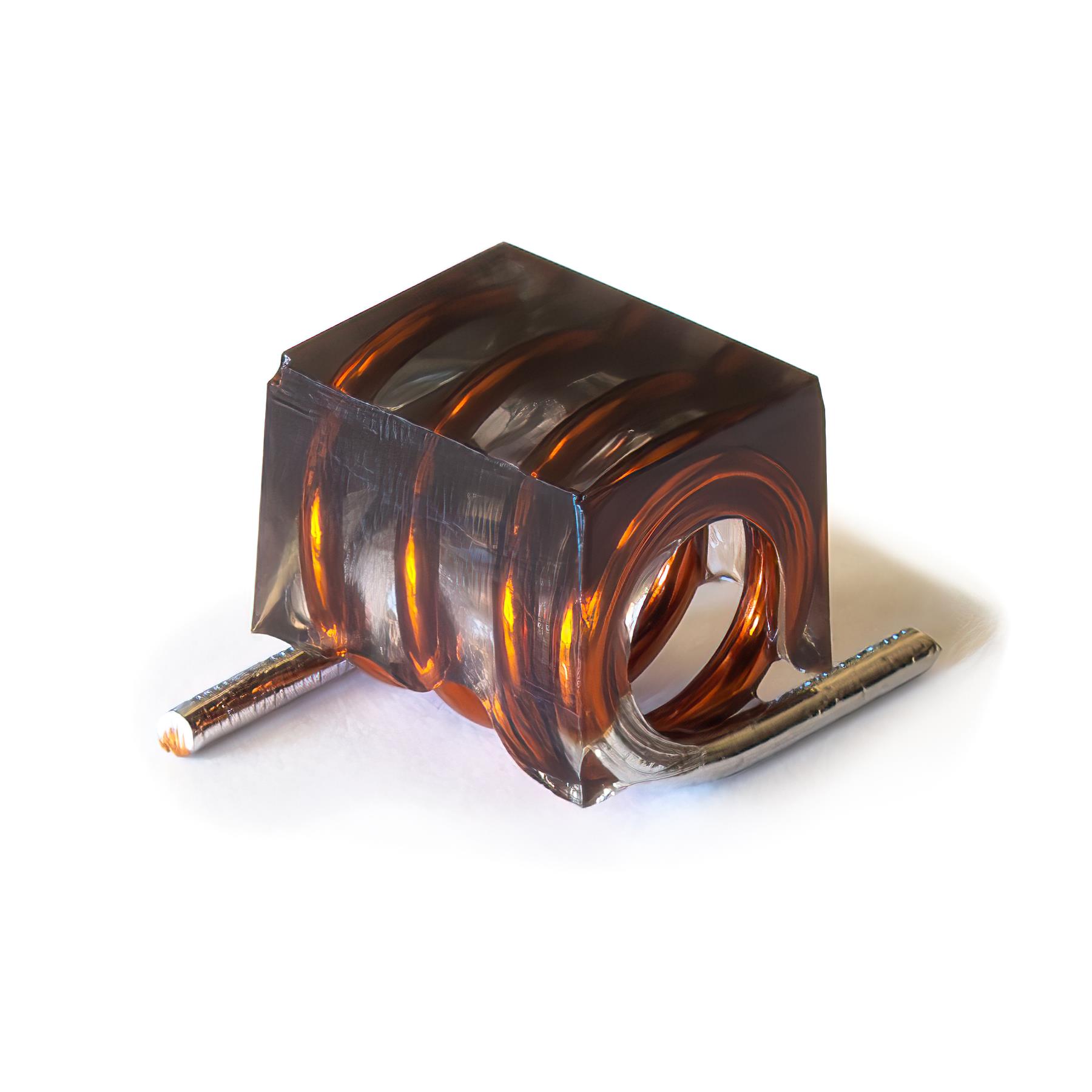

AC4842R-33NK
ActiveBourns Inc.
IND AIR COIL 33NH 3A
AC4842R-33NK
ActiveBourns Inc.
IND AIR COIL 33NH 3A
Description
General part information
AC4842R-33NK
33 nH Unshielded Wirewound Inductor 3 A 4.8mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | AC4842R-33NK |
|---|---|
| Current Rating | 3 A |
| DC Resistance (DCR) (Max) | 4.8 mOhm |
| Frequency - Self Resonant | 2.5 GHz |
| Height - Seated (Max) | 0.165 in |
| Inductance | 33 nH |
| Inductance Frequency - Test | 150 MHz |
| Material - Core | Air |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Nonstandard |
| Q | 100 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.19 in |
| Size / Dimension Width | 0.15 in |
| Tolerance | 10 % |
| Type | Wirewound |
