AD-716M-QCM-PM-2.5

Active

Amphenol Times Microwave Systems

7/16 MALE INSTA-CHANGE ADAPTER

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

7/16 MALE INSTA-CHANGE ADAPTER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AD-716M-QCM-PM-2.5	AD-716 Series

Adapter Series	7/16 to QC	7/16 to QC
Adapter Type	Plug to Plug	Plug to Plug, Plug to Jack
Body Finish	White Bronze	White Bronze
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Silver	Silver
Center Gender	Male to Male	Male to Male
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	7/16 Plug, Male Pin	7/16 Plug, Male Pin, 7/16 Jack, Female Socket
Convert To (Adapter End)	QC Plug, Male Pin	QC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On	Threaded, Snap-On
Frequency - Max [Max]	2.5 GHz	2.5 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Style	Straight	Straight

7/16 MALE INSTA-CHANGE ADAPTER

Part	Center Gender	Mating Cycles	Convert From (Adapter End)	Impedance	Fastening Type	Mounting Feature	Dielectric Material	Frequency - Max [Max]	Style	Center Contact Material	Body Material	Center Contact Plating	Adapter Type	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Adapter Series	Conversion Type
Amphenol Times Microwave Systems AD-716M-QCM-PM-2.5	Male to Male	500	7/16 Plug, Male Pin	50 Ohms	Snap-On, Threaded	Flange	Polytetrafluoroethylene (PTFE)	2.5 GHz	Straight	Beryllium Copper	Brass	Silver	Plug to Plug	White Bronze	-65 ░C	165 °C	Male Pin, QC Plug	7/16 to QC	Between Series
Amphenol Times Microwave Systems AD-716F-QCM-PM-2.5		500	7/16 Jack, Female Socket	50 Ohms	Snap-On, Threaded	Flange	Polytetrafluoroethylene (PTFE)	2.5 GHz	Straight	Beryllium Copper	Brass	Silver	Plug to Jack	White Bronze	-65 ░C	165 °C	Male Pin, QC Plug	7/16 to QC	Between Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

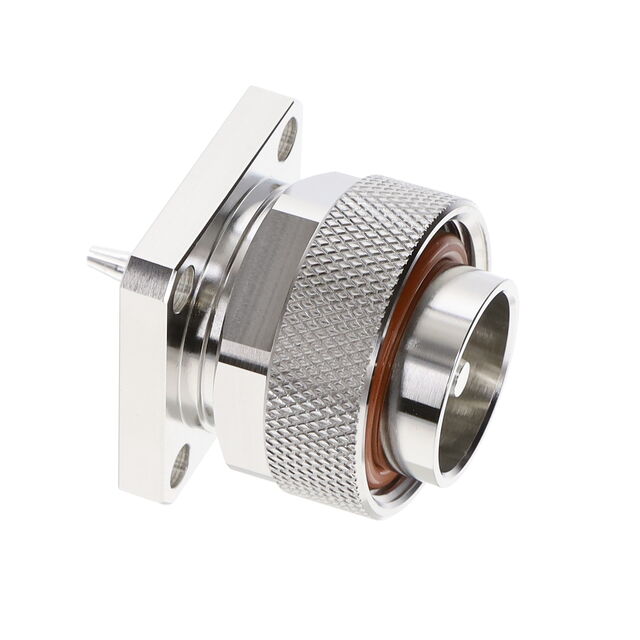

Adapter Coaxial Connector 7/16 Plug, Male Pin To QC Plug, Male Pin 50 Ohms
