DC3332004S

Active

SAB North America

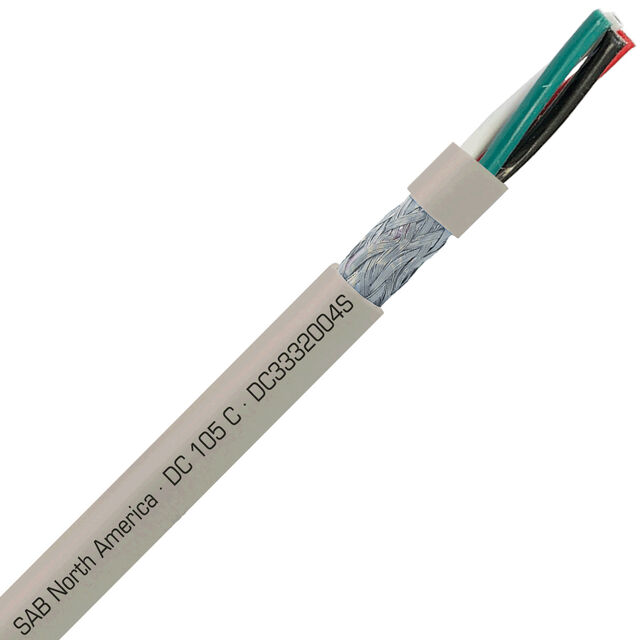

CABLE 4COND 20AWG GRY SHLD 1=1FT

Search across all available documentation for this part.

Active

SAB North America

CABLE 4COND 20AWG GRY SHLD 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332004S

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.2 mm
Jacket (Insulation) Diameter [diameter]	0.244 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	20 AWG

CABLE 4COND 20AWG GRY SHLD 1=1FT

Part	Conductor Insulation	Wire Gauge	Shield Type	Number of Conductors	Cable Type	Conductor Material	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length	Operating Temperature [Min]	Operating Temperature [Max]	Voltage
SAB North America DC3332004S	Poly-Vinyl Chloride (PVC)	20 AWG	Braid, Foil	4	Multi-Conductor	Copper, Tinned	Poly-Vinyl Chloride (PVC)	19	32 AWG	Copper, Tinned	Gray	6.2 mm	0.244 in	Drain Wire	Enter Number of Feet in Order Quantity	-25 °C	105 ░C	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 20 AWG Foil, Braid Enter Number of Feet in Order Quantity
