53C110KZ
ObsoleteHoneywell Sensing and Productivity Solutions
POT 10K OHM 2W PLASTIC LOG
53C110KZ
ObsoleteHoneywell Sensing and Productivity Solutions
POT 10K OHM 2W PLASTIC LOG
Description
General part information
53C110KZ

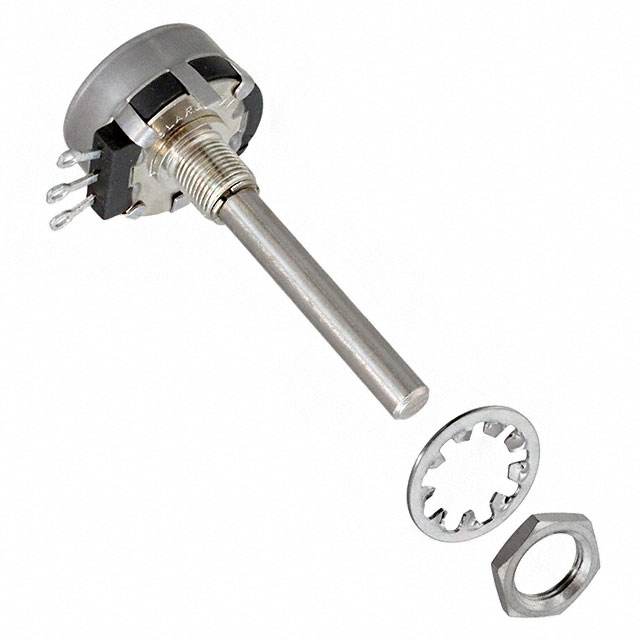

10k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Conductive Plastic 2W Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 53C110KZ |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Length | 50.8 mm |
| Actuator Type | Round |
| Adjustment Type | User Defined |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 1 turns |
| Power (Watts) | 2 w |
| Resistance | 10 kOhm |
| Resistive Material | Conductive Plastic |
| Rotation | 312 ° |
| Size - Body Diameter | 1.094 in |
| Size - Body Shape | Round |
| Taper | Logarithmic |
| Termination Style | Solder Lug |
| Tolerance | 10 % |
