0828572
ActivePhoenix Contact
WIRE MARKR SLIP-ON 4.3MM X 12MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0828572
ActivePhoenix Contact
WIRE MARKR SLIP-ON 4.3MM X 12MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0828572 | UCT-WMS Series |
|---|---|---|
| Cable Diameter | - | 0.098 - 0.185 in |
| Cable Diameter | - | 2.5 - 4.7 mm |
| Cable Diameter [Max] [diameter] | 0.126 in | 0.126 in |
| Cable Diameter [Max] [diameter] | 3.2 mm | 3.2 mm |
| Cable Diameter [Min] [diameter] | 0.059 in | 0.059 in |
| Cable Diameter [Min] [diameter] | 1.5 mm | 1.5 mm |
| Color | Yellow | White, Yellow, Blue, Red |
| Legend | Blank | Blank |
| Material | Polycarbonate | Polycarbonate |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size [x] | 4.3 mm | 4.3 - 5.5 mm |
| Size [x] | 0.17 " | 0.17 - 0.22 in |
| Size [y] | 0.47 " | 0.47 " |
| Size [y] | 12 mm | 12 mm |
| Type | Wire Marker, Slip-On | Wire Marker, Slip-On |
UCT-WMS Series
WIRE MARKER SLIP-ON 5.5X12MM WHT
| Part | Size [x] | Size [x] | Size [y] | Size [y] | Type | Cable Diameter [diameter] | Cable Diameter [diameter] | Legend | Operating Temperature [Min] | Operating Temperature [Max] | Material | Color | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0828571 | 0.22 in | 5.5 mm | 12 mm | 0.47 " | Wire Marker, Slip-On | 0.098 in, 0.185 in | 2.5 mm, 4.7 mm | Blank | -40 °C | 120 °C | Polycarbonate | White | ||||
Phoenix Contact 0828572 | 0.17 " | 4.3 mm | 12 mm | 0.47 " | Wire Marker, Slip-On | Blank | -40 °C | 120 °C | Polycarbonate | Yellow | 0.059 in | 0.126 in | 1.5 mm | 3.2 mm | ||
Phoenix Contact 0830202 | 0.17 " | 4.3 mm | 12 mm | 0.47 " | Wire Marker, Slip-On | Blank | -40 °C | 120 °C | Polycarbonate | Blue | 0.059 in | 0.126 in | 1.5 mm | 3.2 mm | ||
Phoenix Contact 0830200 | 0.17 " | 4.3 mm | 12 mm | 0.47 " | Wire Marker, Slip-On | Blank | -40 °C | 120 °C | Polycarbonate | 0.059 in | 0.126 in | 1.5 mm | 3.2 mm | |||
Phoenix Contact 0830199 | 0.17 " | 4.3 mm | 12 mm | 0.47 " | Wire Marker, Slip-On | Blank | -40 °C | 120 °C | Polycarbonate | Red | 0.059 in | 0.126 in | 1.5 mm | 3.2 mm | ||
Phoenix Contact 0830209 | 0.22 in | 5.5 mm | 12 mm | 0.47 " | Wire Marker, Slip-On | 0.098 in, 0.185 in | 2.5 mm, 4.7 mm | Blank | -40 °C | 120 °C | Polycarbonate | Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.14 | |
| 10 | $ 6.35 | |||
| 50 | $ 5.79 | |||
| 100 | $ 5.55 | |||
| 250 | $ 5.08 | |||
| 500 | $ 4.76 | |||
| 1000 | $ 4.41 | |||
Description
General part information
UCT-WMS Series

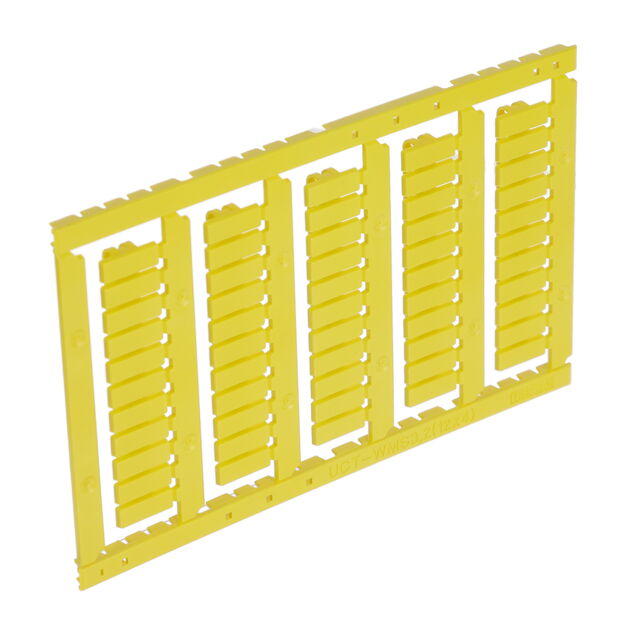

Wire Marker, Slip-On 0.17" W x 0.47" L (4.3mm x 12.0mm) Yellow Polycarbonate
Documents
Technical documentation and resources
