9414 T355000

Active

Belden Inc.

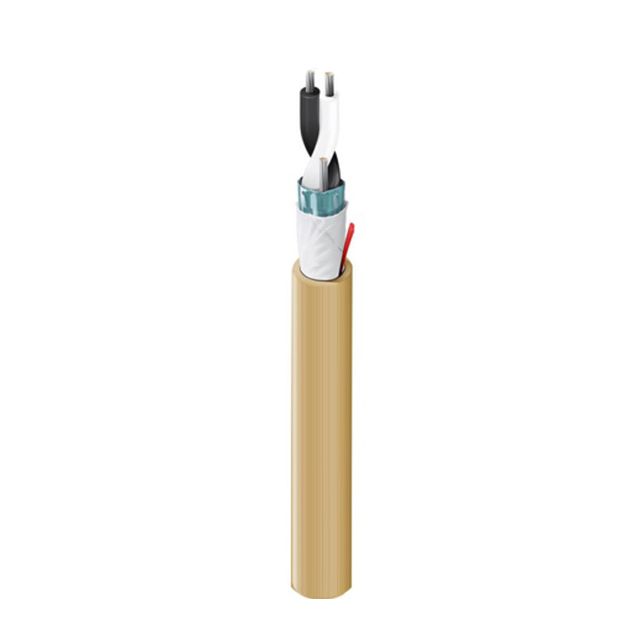

CABLE 2COND 22AWG BEI SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG BEI SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9414 T355000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.57 mm
Jacket (Insulation) Diameter [diameter]	0.18 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Beige
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Shield Material	Usage	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Features	Conductor Insulation	Jacket Color	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Cable Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Number of Conductors	Length	Length
Belden Inc. 9414 T35500	4.57 mm	0.18 in	100 %	Aluminum	Audio Control Instrumentation	300 V	0.889 mm	0.035 in	Foil	Drain Wire	Poly-Vinyl Chloride (PVC)	Beige	500 '	152.4 m	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	7	30 AWG	22 AWG	2
Belden Inc. 9414 T351000	4.57 mm	0.18 in	100 %	Aluminum	Audio Control Instrumentation	300 V	0.889 mm	0.035 in	Foil	Drain Wire	Poly-Vinyl Chloride (PVC)	Beige			-20 C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	7	30 AWG	22 AWG	2	1000 ft	304.8 m
Belden Inc. 9414 T355000	4.57 mm	0.18 in	100 %	Aluminum	Audio Control Instrumentation	300 V	0.889 mm	0.035 in	Foil	Drain Wire	Poly-Vinyl Chloride (PVC)	Beige			-20 C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Copper Tinned	7	30 AWG	22 AWG	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 1.86

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Beige 22 AWG Foil 5000' (1524.0m)
