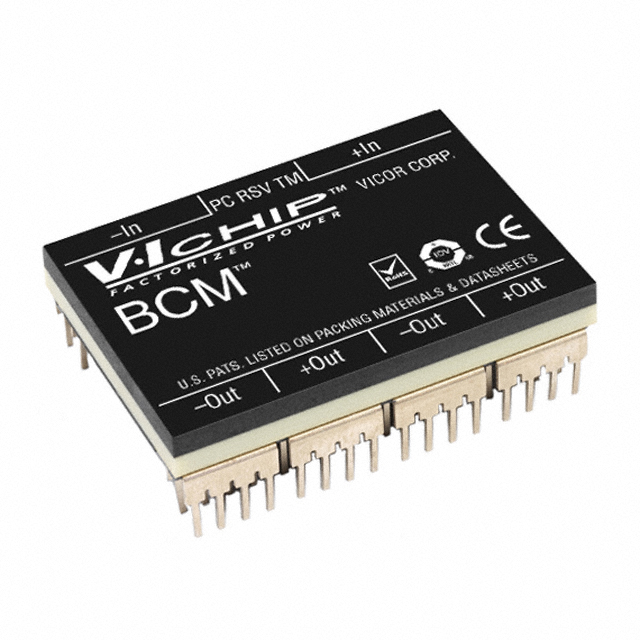

B048T096T24
ObsoleteVicor Corporation
DC DC CONVERTER 9.6V 240W
B048T096T24
ObsoleteVicor Corporation
DC DC CONVERTER 9.6V 240W
Description
General part information
B048T096T24
Bus Converter Module DC DC Converter 1 Output 9.6V 25A 38V - 55V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | B048T096T24 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 25 A |
| Efficiency | 96.2 % |
| Features | Remote On/Off, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power (Watts) | 240 W |
| Size / Dimension Height | 0.26 in |
| Size / Dimension Length | 1.28 in |
| Size / Dimension Width | 0.87 in |
| Type | Bus Converter Module |
| Voltage - Input (Max) | 55 V |
| Voltage - Input (Min) | 38 V |
| Voltage - Isolation | 2.25 kV |
| Voltage - Output 1 | 9.6 V |
