10120-52B2PC - 10120-52B2PC

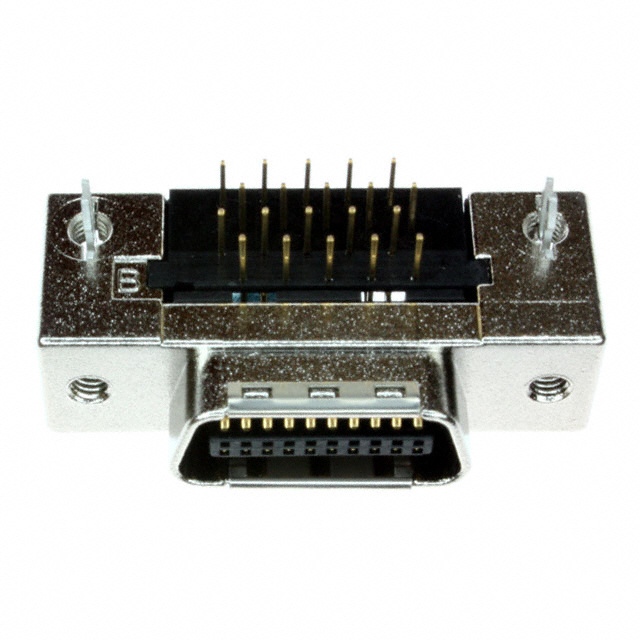

10120-52B2PC

Active
3M

JE150344982 10120-52B2PC=20/MDR/RC/RA/PLUG/GRNDLK/30MIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMDR Selection GuideDatasheet+1
10120-52B2PC - 10120-52B2PC

10120-52B2PC

Active
3M

JE150344982 10120-52B2PC=20/MDR/RC/RA/PLUG/GRNDLK/30MIN

Deep-Dive with AI

DocumentsMDR Selection GuideDatasheet+1

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification10120-52B2PC10120 Series
Connector Style-Center Strip Contacts
Connector Type-Plug
Contact Finish-Gold
Contact Finish Thickness-0.51 - 0.76 µm
Contact Finish Thickness-20 - 30 µin
Features-Shielded, Board Lock
Flange Feature-Housing/Shell, M2.5
Flange Feature-2.6 M
Mounting Type-Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount
null-
Number of Positions-20
Number of Rows-2
Termination-Solder
Type-Board to Board
