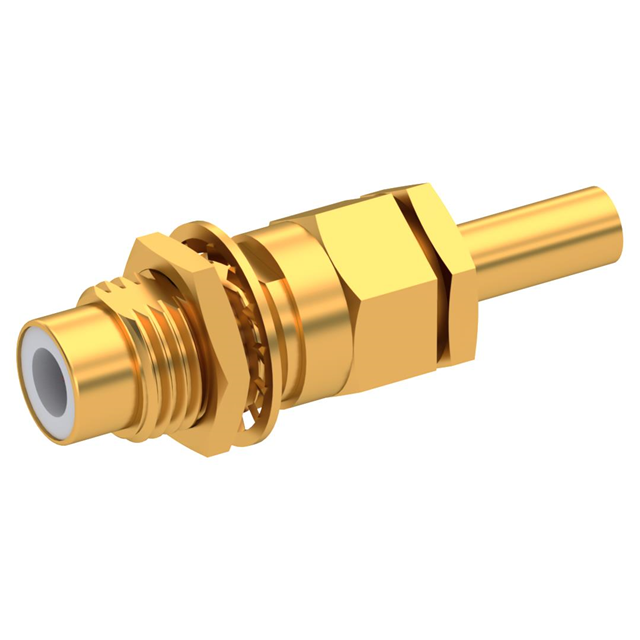

1703-1571-003

Active

Radiall USA, Inc.

75OHM M STR BHD CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

75OHM M STR BHD CR 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	1703-1571-003

Body Finish	Gold
Body Material	Brass
Cable Group	RG-316
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Crimp

Part	Body Material	Cable Group	Shield Termination	Mounting Feature	Contact Termination	Fastening Type	Connector Type	Body Finish	Housing Color	Center Contact Plating	Impedance	Number of Ports	Includes	Dielectric Material
Radiall USA, Inc. 1703-1571-003	Brass	RG-316	Crimp	Bulkhead - Front Side Nut	Crimp	Snap-On	Jack Male Pin	Gold	Gold	Gold	75 Ohms	1	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Jack, Male Pin 75 Ohms Panel Mount Crimp
