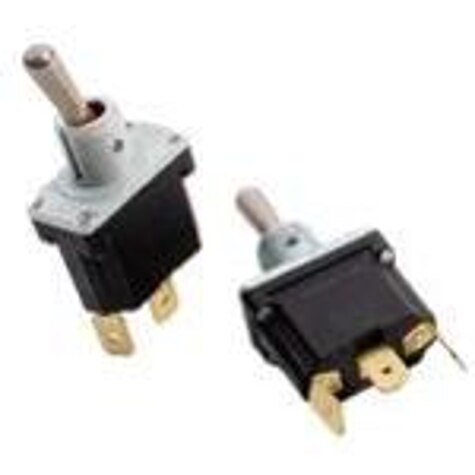

1NT91-61
ObsoleteHoneywell Sensing and Productivity Solutions
TOGGLE SWITCHES TOGGLE SW 1POLE 3POS QK CONN TERM STD LV
1NT91-61
ObsoleteHoneywell Sensing and Productivity Solutions
TOGGLE SWITCHES TOGGLE SW 1POLE 3POS QK CONN TERM STD LV
Description
General part information
1NT91-61
TOGGLE SWITCHES TOGGLE SW 1POLE 3POS QK CONN TERM STD LV
Technical Specifications
Parameters and characteristics for this part
| Specification | 1NT91-61 |
|---|---|
| Actuator Length | 17.02 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | SPST-NO |
| Current Rating | 10 A |
| Features | Sealed |
| Illumination | Non-Illuminated |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP68, IP67 |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 12.4 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.250") | 0.25 in |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
