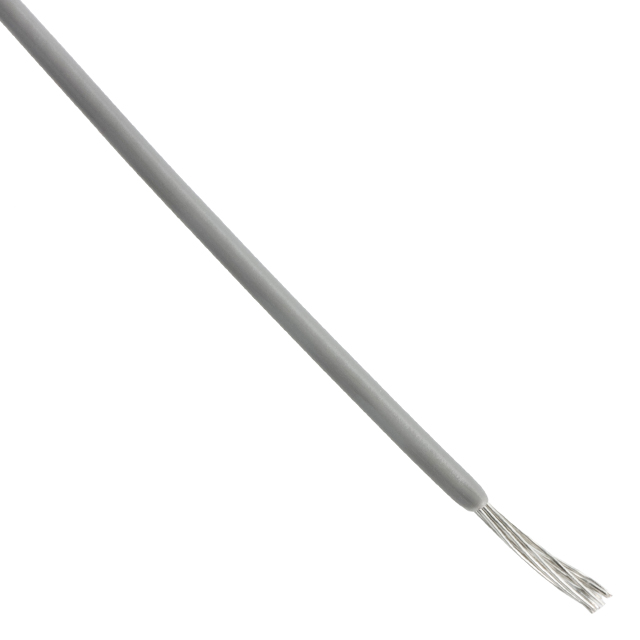

12819 SL001

Active

ALPHA WIRE

HOOK-UP STRND 28AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

HOOK-UP STRND 28AWG SLATE 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12819 SL001	12819 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Silver Coated	Copper, Silver Coated
Conductor Strand [custom]	19	19
Conductor Strand [custom]	40 AWG	40 AWG
Jacket (Insulation) Diameter [diameter]	0.91 mm	0.91 mm
Jacket (Insulation) Diameter [diameter]	0.036 in	0.036 in
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.25 mm	0.25 mm
Jacket (Insulation) Thickness	0.01 in	0.01 in
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-60 °C	-60 °C
Qualification	MIL-DTL-16878/4 Type E	MIL-DTL-16878/4 Type E
Voltage	600 V	600 V
Wire Gauge	28 AWG	28 AWG

HOOK-UP STRND 28AWG SLATE 1000'

Part	Voltage	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Material	Cable Type	Wire Gauge	Conductor Material	Qualification	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]
ALPHA WIRE 12819 SL001	600 V	1000 ft	304.8 m	200 °C	-60 °C	0.91 mm	0.036 in	Slate	Polytetrafluoroethylene (PTFE)	Hook-Up	28 AWG	Copper, Silver Coated	MIL-DTL-16878/4 Type E	0.25 mm	0.01 in	19	40 AWG
ALPHA WIRE 12819 WH001	600 V	1000 ft	304.8 m	200 °C	-60 °C	0.91 mm	0.036 in		Polytetrafluoroethylene (PTFE)	Hook-Up	28 AWG	Copper, Silver Coated	MIL-DTL-16878/4 Type E	0.25 mm	0.01 in	19	40 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

28 AWG Hook-Up Wire 19/40 Slate 600V 1000.0' (304.8m)

Technical documentation and resources
