WCP3015W08-U050D3B0A

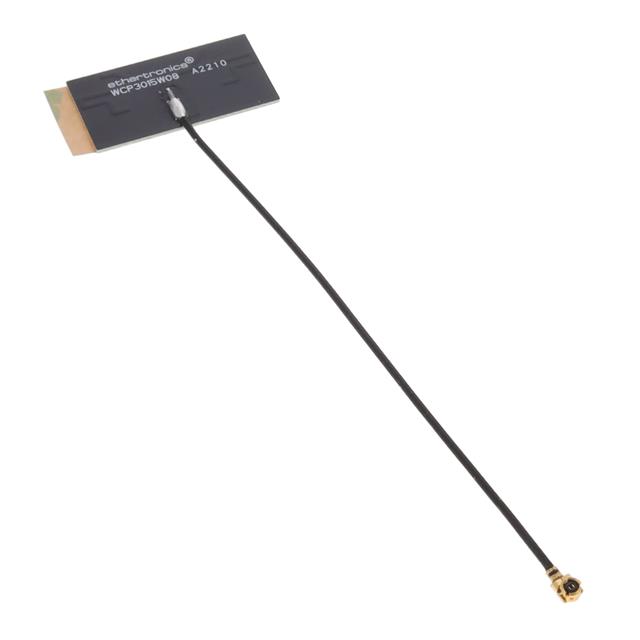

RF ANTENNA Wi-Fi PCB Trace U.FL Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | WCP3015W08-U050D3B0A |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi |
| Features | Cable, 50mm |
| Frequency (Band) | 5.5 GHz |
| Frequency (Center) | 2.44 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.48 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Gain | 6.7 dBi, 3 dBi |
| Height (Max) | 0.031 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Return Loss | 8.7dB, -8.4dB |
| Return Loss | -8.4 dB, 8.7 dB |
| RF Family/Standard | WiFi |
| Termination | U.FL |
