SST39SF010A-70-4C-PHE

Active

Microchip Technology

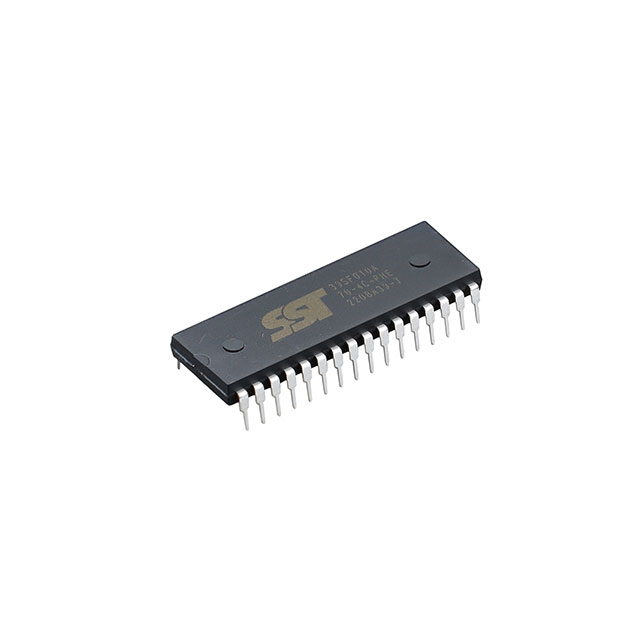

FLASH PARALLEL 5V 1MBIT 128K X 8BIT 70NS 32-PIN PDIP

Deep-Dive with AI

Search across all available documentation for this part.

Documents39 Series Brief Datasheet +5

SST39SF010A-70-4C-PHE

Active

Microchip Technology

FLASH PARALLEL 5V 1MBIT 128K X 8BIT 70NS 32-PIN PDIP

Deep-Dive with AI

Documents39 Series Brief Datasheet +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SST39SF010A-70-4C-PHE	SST39SF010A Series

Access Time	70 ns	45 - 70 ns
Memory Format	FLASH	FLASH
Memory Interface	Parallel	Parallel
Memory Organization	128K x 8	128K x 8
Memory Size	1 Mbit	1 Mbit
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	15.24 mm	15.24 mm
Package / Case	0.6 in	0.6 in
Package / Case	32-DIP	32-TFSOP, 32-LCC (J-Lead), 32-DIP
Package / Case	-	0.488 in
Package / Case	-	12.4 mm
Supplier Device Package	32-PDIP	32-TSOP, 32-PLCC, 32-PDIP
Supplier Device Package	-	11.43
Supplier Device Package	-	13.97
Technology	FLASH	FLASH, FLASH - NOR
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V
Write Cycle Time - Word, Page [custom]	20 µs	20 µs
Write Cycle Time - Word, Page [custom]	20 µs	20 µs

SST39SF010A Series

IC FLASH 1MBIT PARALLEL 32TSOP

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Package / Case [y]	Package / Case [y]	Package / Case	Memory Organization	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Access Time	Supplier Device Package	Memory Size	Memory Format	Memory Type	Memory Interface	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Supplier Device Package [x]	Supplier Device Package [y]
Microchip Technology SST39SF010A-70-4C-WHE	4.5 V	5.5 V	Surface Mount	0.488 in	12.4 mm	32-TFSOP	128K x 8	70 °C	0 °C	FLASH	70 ns	32-TSOP	1 Mbit	FLASH	Non-Volatile	Parallel	20 µs	20 µs
Microchip Technology SST39SF010A-70-4I-WHE-T	4.5 V	5.5 V	Surface Mount	0.488 in	12.4 mm	32-TFSOP	128K x 8	85 °C	-40 °C	FLASH - NOR	70 ns	32-TSOP	1 Mbit	FLASH	Non-Volatile	Parallel	20 µs	20 µs
Microchip Technology SST39SF010A-70-4C-WHE-T	4.5 V	5.5 V	Surface Mount	0.488 in	12.4 mm	32-TFSOP	128K x 8	70 °C	0 °C	FLASH	70 ns	32-TSOP	1 Mbit	FLASH	Non-Volatile	Parallel	20 µs	20 µs
Microchip Technology SST39SF010A-55-4C-NHE-T	4.5 V	5.5 V	Surface Mount			32-LCC (J-Lead)	128K x 8	70 °C	0 °C	FLASH	55 ns	32-PLCC	1 Mbit	FLASH	Non-Volatile	Parallel	20 µs	20 µs	11.43	13.97
Microchip Technology SST39SF010A-55-4I-WHE-T	4.5 V	5.5 V	Surface Mount	0.488 in	12.4 mm	32-TFSOP	128K x 8	85 °C	-40 °C	FLASH	55 ns	32-TSOP	1 Mbit	FLASH	Non-Volatile	Parallel	20 µs	20 µs
Microchip Technology SST39SF010A-55-4C-WHE	4.5 V	5.5 V	Surface Mount	0.488 in	12.4 mm	32-TFSOP	128K x 8	70 °C	0 °C	FLASH	55 ns	32-TSOP	1 Mbit	FLASH	Non-Volatile	Parallel	20 µs	20 µs
Microchip Technology SST39SF010A-70-4C-NHE-T	4.5 V	5.5 V	Surface Mount			32-LCC (J-Lead)	128K x 8	70 °C	0 °C	FLASH	70 ns	32-PLCC	1 Mbit	FLASH	Non-Volatile	Parallel	20 µs	20 µs	11.43	13.97
Microchip Technology SST39SF010A-70-4I-NHE	4.5 V	5.5 V	Surface Mount			32-LCC (J-Lead)	128K x 8	85 °C	-40 °C	FLASH	70 ns	32-PLCC	1 Mbit	FLASH	Non-Volatile	Parallel	20 µs	20 µs	11.43	13.97
Microchip Technology SST39SF010A-45-4I-NHE	4.5 V	5.5 V	Surface Mount			32-LCC (J-Lead)	128K x 8	85 °C	-40 °C	FLASH	45 ns	32-PLCC	1 Mbit	FLASH	Non-Volatile	Parallel	20 µs	20 µs	11.43	13.97
Microchip Technology SST39SF010A-55-4I-NHE-T	4.5 V	5.5 V	Surface Mount			32-LCC (J-Lead)	128K x 8	85 °C	-40 °C	FLASH	55 ns	32-PLCC	1 Mbit	FLASH	Non-Volatile	Parallel	20 µs	20 µs	11.43	13.97

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.98
		25	$ 2.87
		100	$ 2.77
Microchip Direct	TUBE	1	$ 2.89
		25	$ 2.79
		100	$ 2.69
		1000	$ 2.55
		5000	$ 2.39

Description

General part information

SST39SF010A Series

Organized as 128K x8 / 256K x8 / 512K x8

Single 4.5-5.5V Read and Write Operations

Superior ReliabilityEndurance: 100,000 Cycles (typical)Greater than 100 years Data Retention

Documents

Technical documentation and resources

SST39SF010A/SST39SF020A/SST39SF040 - 1-Mbit/2-Mbit/4-Mbit (x8) Multi-Purpose Flash

Data Sheets

SST39SF010A-70-4C-PHE

Deep-Dive with AI

SST39SF010A-70-4C-PHE

Deep-Dive with AI

Technical Specifications

SST39SF010A Series

Pricing

Description

SST39SF010A Series

Documents

39 Series Brief

Datasheet

Multi-Purpose Flash Power Ratings

Memory Products Brochure

Designing In SST Multi-Purpose Flash (39 Series) Byte-wide Products

Million Cycle Endurance

SST39SF010A/SST39SF020A/SST39SF040 - 1-Mbit/2-Mbit/4-Mbit (x8) Multi-Purpose Flash

Technical Specifications

SST39SF010A Series
