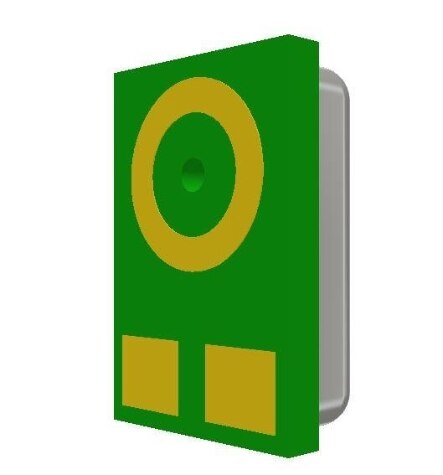

AMM-2738-3-B
ActivePUI Audio, Inc.
MEMS MICROPHONES ANALOG MICROPHONE -38DB 1.6VDC
AMM-2738-3-B
ActivePUI Audio, Inc.
MEMS MICROPHONES ANALOG MICROPHONE -38DB 1.6VDC
Description
General part information
AMM-2738-3-B
100 Hz ~ 20 kHz Analog Microphone MEMS (Silicon) 1.6 V ~ 3.6 V Omnidirectional (-38dB ±1dB @ 94dB SPL) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | AMM-2738-3-B |
|---|---|
| Current - Supply | 110 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 100 Hz |
| Height (Max) | 0.039 in |
| Impedance | 300 Ohms |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 63 dB |
| Sensitivity (Nominal) | -38 dB |
| Sensitivity Tolerance | 1 dB |
| Shape | Rectangular |
| Size / Dimension Length | 0.108 in |
| Size / Dimension Width | 0.073 in |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 2 VAC |
| Voltage Range (Max) | 3.6 V |
| Voltage Range (Min) | 1.6 V |
