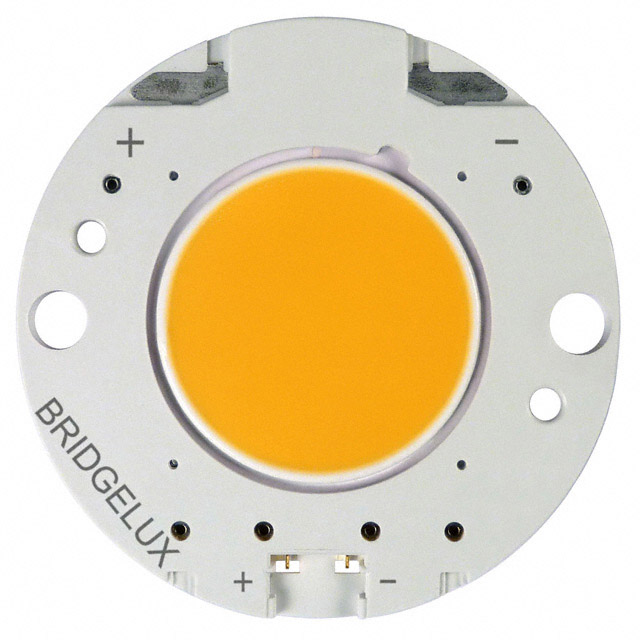

BXRC-17E4000-F-04

Obsolete

BRIDGELUX

LED COB DECOR WM WH ROUND 1750K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-17E4000-F-04

Obsolete

BRIDGELUX

LED COB DECOR WM WH ROUND 1750K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRC-17 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Décor Food Meat & Deli Vero 18 White, Warm Round

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-17E4000-F-04	BXRC-17 Series

CCT (K)	1750 K	1750 K
CCT (K)	-	3-Step MacAdam Ellipse
Color	White, Warm	White, Warm
Configuration	Round	Round
CRI (Color Rendering Index)	80	80
Current - Max [Max]	2.1 A	1.8 - 4.2 A
Current - Test	1.05 A	1.05 - 900 A
Features	With Connector	With Connector
Height [z]	1.9 mm	1.9 - 3.6 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	18.4 mm	18.4 - 29.2 mm
Lumens/Watt @ Current - Test	63 lm/W	62 - 89 lm/W
Luminous Flux @ Current/Temperature	-	2349 - 10443 lm
Size / Dimension [diameter]	36.2 mm	36.2 - 49.2 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	28.8 V	28.1 - 69.4 V

BXRC-17 Series

LED COB GEN7 DECOR WHT RND 1750K

Part	CRI (Color Rendering Index)	Current - Max [Max]	Viewing Angle	Height [z]	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Color	Lens Type	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Features	Type	Temperature - Test	Current - Test	Configuration	Size / Dimension [diameter]	CCT (K)	CCT (K)
BRIDGELUX BXRC-17E4000-D-74	80	2.1 A	120 °	1.9 mm	2349 lm	28.1 V	Warm, White	Flat	80 lm/W	18.4 mm	With Connector	Chip On Board (COB)	85 °C	1.05 A	Round	36.2 mm	1750 K
BRIDGELUX BXRC-17E10K0-D-73	80	4.2 A	120 °	1.9 mm	6994 lm	37.6 V	Warm, White	Flat	89 lm/W	29.2 mm		Chip On Board (COB)		2.1 A	Round	49.2 mm	1750 K	3-Step MacAdam Ellipse
BRIDGELUX BXRC-17E4000-B-74-SE	80	1.8 A	120 °	3.6 mm	2452 lm	33.9 V	Warm, White	Flat	80 lm/W	18.4 mm		Chip On Board (COB)	85 °C	900 mA	Round	36.2 mm	1750 K
BRIDGELUX BXRC-17E4000-C-74	80	2.34 A	120 °	1.9 mm	3141 lm	34.3 V	Warm, White	Flat	78 lm/W	18.4 mm	With Connector	Chip On Board (COB)	85 °C		Round	36.2 mm	1750 K
BRIDGELUX BXRC-17E4000-F-24	80	2.1 A	120 °	1.9 mm		28.8 V	Warm, White	Flat	63 lm/W	18.4 mm	With Connector	Chip On Board (COB)	85 °C	1.05 A	Round	36.2 mm	1750 K
BRIDGELUX BXRC-17E4000-C-74-SE	80	2.34 A	120 °	3.6 mm		33.9 V	Warm, White	Flat	80 lm/W	18.4 mm		Chip On Board (COB)	85 °C		Round	36.2 mm	1750 K
BRIDGELUX BXRC-17E4000-B-74	80	1.8 A	120 °	1.9 mm	2416 lm	34.1 V	Warm, White	Flat	79 lm/W	18.4 mm	With Connector	Chip On Board (COB)	85 °C	900 mA	Round	36.2 mm	1750 K
BRIDGELUX BXRC-17E10K0-B-74-SE	80	3.6 A	120 °	3.6 mm	8237 lm	52 V	Warm, White	Flat	88 lm/W	29.2 mm		Chip On Board (COB)		1.8 A	Round	49.2 mm	1750 K
BRIDGELUX BXRC-17E10K0-B-74	80	3.6 A	120 °	1.9 mm	8053 lm	52 V	Warm, White	Flat	86 lm/W	29.2 mm	With Connector	Chip On Board (COB)		1.8 A	Round	49.2 mm	1750 K
BRIDGELUX BXRC-17E10K0-L-24	80	4.2 A	120 °	1.9 mm	4803 lm	36.8 V	Warm, White	Flat	62 lm/W	29.2 mm		Chip On Board (COB)	85 °C	2.1 A	Round	49.2 mm	1750 K
