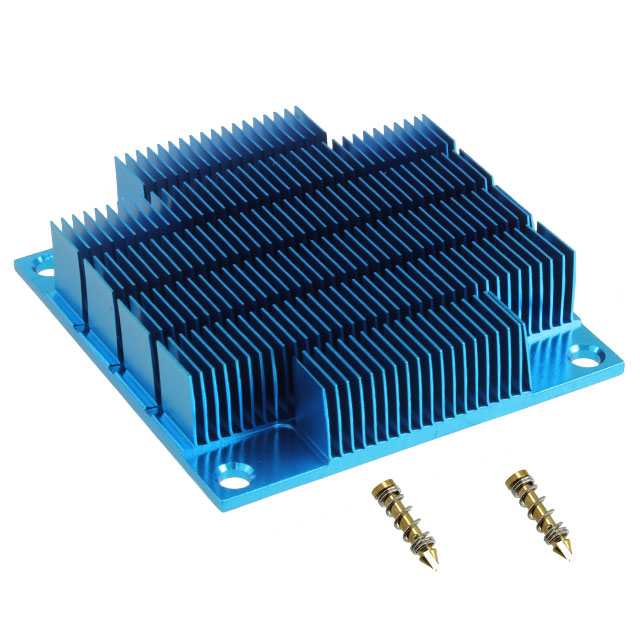

ATS-01E-110-C2-R1

Active

Advanced Thermal Solutions Inc.

HEATSINK 54.00MM X 54.00MM ALUM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-01E-110-C2-R1

Active

Advanced Thermal Solutions Inc.

HEATSINK 54.00MM X 54.00MM ALUM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-01E-110-C2-R1	ATS-01E Series

Attachment Method	Push Pin	Push Pin
Fin Height	-	0.23 - 1.378 in
Fin Height	-	5.84 - 35 mm
Fin Height [z]	12.7 mm	10 - 30 mm
Fin Height [z]	0.5 in	0.394 - 1.181 in
Length	-	25 - 70 mm
Length	-	0.984 - 2.756 in
Length [x]	54 mm	30 - 60 mm
Length [x]	2.126 "	1.181 - 2.362 in
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Square, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	26.99 °C/W	2.17 - 100 LFM
Type	Top Mount	Top Mount
Width	-	50 - 70 mm
Width	-	1.45 - 2.756 in
Width	-	25 - 57.6 mm
Width	-	1.181 - 2.267 in
Width [x]	2.126 "	0.984 - 2.362 in
Width [x]	54 mm	40 - 60 mm

ATS-01E Series

HEATSINK 50X50X10MM XCUT T412

...

Part	Attachment Method	Material Finish	Type	Package Cooled	Thermal Resistance @ Forced Air Flow	Width [y]	Width [y]	Length [x]	Length [x]	Material	Shape	Fin Height [z]	Fin Height [z]	Fin Height	Fin Height	Width [x]	Width [x]	Width	Length	Length
Advanced Thermal Solutions Inc. ATS-01E-121-C3-R0	Push Pin	Blue Anodized	Top Mount	ASIC, BGA, CPU, LGA	9.56 °C/W, 100 LFM	50 mm	1.969 in	1.969 in	50 mm	Aluminum	Fins, Square	0.394 in	10 mm
Advanced Thermal Solutions Inc. ATS-01E-96-C2-R0	Push Pin	Blue Anodized	Top Mount	ASIC, BGA, CPU, LGA	5.63 °C/W					Aluminum	Fins, Square			1.378 in	35 mm	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-01E-47-C3-R0	Push Pin	Blue Anodized	Top Mount	ASIC, BGA, CPU, LGA	9.58 °C/W, 100 LFM					Aluminum	Fins, Square	1.181 in	30 mm			0.984 in		25 mm	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-01E-131-C1-R0	Push Pin	Blue Anodized	Top Mount	ASIC, BGA, CPU, LGA	3.58 °C/W, 100 LFM			2.362 in	60 mm	Aluminum	Fins, Square	0.79 in	20 mm			2.362 in	60 mm
Advanced Thermal Solutions Inc. ATS-01E-140-C3-R0	Push Pin	Blue Anodized	Top Mount	ASIC, BGA, CPU, LGA	7.55 °C/W, 100 LFM					Aluminum	Fins, Square			0.984 in	25 mm	0.984 in		25 mm	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-01E-71-C1-R0	Push Pin	Blue Anodized	Top Mount	ASIC, BGA, CPU, LGA	6.67 °C/W			1.772 "		Aluminum	Fins, Square	1.181 in	30 mm			1.772 in		45 mm	45 mm
Advanced Thermal Solutions Inc. ATS-01E-42-C1-R0	Push Pin	Blue Anodized	Top Mount	ASIC, BGA, CPU, LGA	7.3 °C/W	60.96 mm	2.4 in			Aluminum	Rectangular, Fins	0.9 in	22.86 mm						57.9 mm	2.28 "
Advanced Thermal Solutions Inc. ATS-01E-60-C2-R0	Push Pin	Blue Anodized	Top Mount	ASIC, BGA, CPU, LGA	6.36 °C/W			1.378 in	35 mm	Aluminum	Fins, Square			1.378 in	35 mm	1.378 in		35 mm
Advanced Thermal Solutions Inc. ATS-01E-25-C2-R0	Push Pin	Blue Anodized	Top Mount	ASIC, BGA, CPU, LGA	6.26 °C/W, 100 LFM			2.362 in	60 mm	Aluminum	Fins, Square			0.984 in	25 mm	2.362 in	60 mm
Advanced Thermal Solutions Inc. ATS-01E-43-C1-R0	Push Pin	Blue Anodized	Top Mount	ASIC, BGA, CPU, LGA	28.78 °C/W					Aluminum	Fins, Square	0.394 in	10 mm			0.984 in		25 mm	25 mm	0.984 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.61
		10	$ 5.46
		25	$ 5.34

Description

General part information

ATS-01E Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
