1056436-1

Active

TE Connectivity AMP Connectors

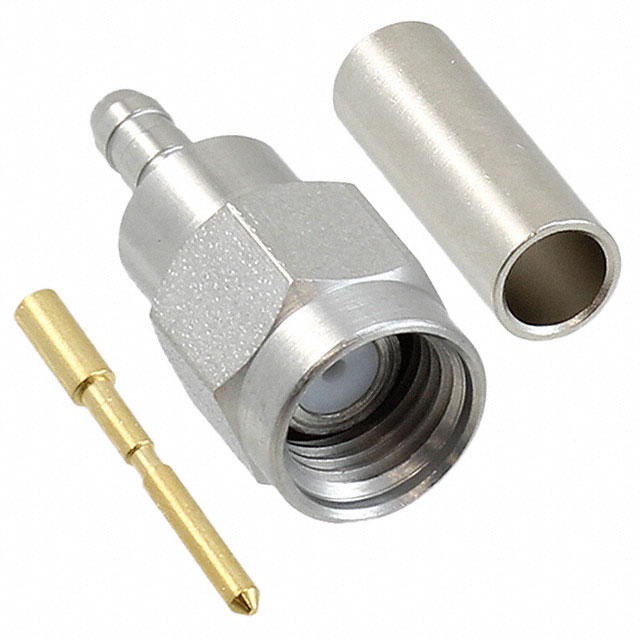

CONN SMA PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMA PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1056436-1

Body Material	Stainless Steel
Cable Group	RD-316 Double Braid
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN SMA PLUG STR 50 OHM SOLDER

Part	Shield Termination	Contact Termination	Mounting Type	Number of Ports	Connector Type	Body Material	Center Contact Plating	Voltage Rating	Housing Color	Mating Cycles	Center Contact Material	Connector Style	Frequency - Max [Max]	Impedance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group
TE Connectivity AMP Connectors 1056436-1	Crimp	Solder	Free Hanging (In-Line)	1	Male Pin, Plug	Stainless Steel	Gold	250 VDC	Silver	500	Brass	SMA	12.4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	RD-316 Double Braid

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
