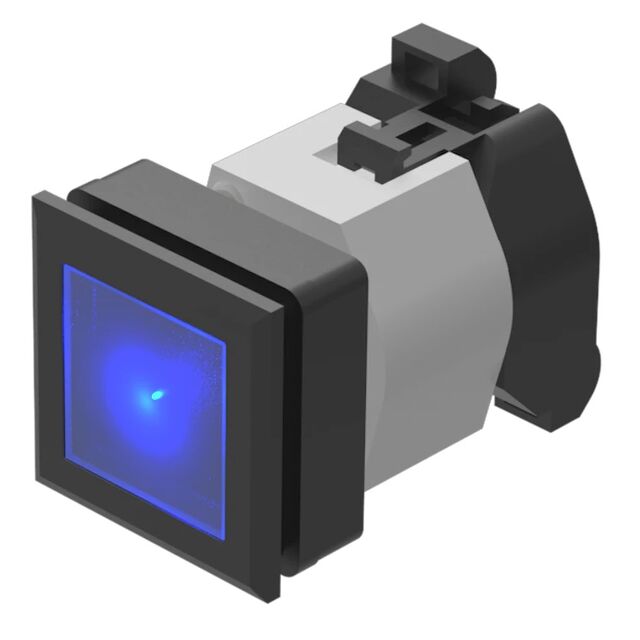

704.229.600
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
704.229.600
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.229.600 | 704.229 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Actuator Type | Pushbutton, Square | Pushbutton, Square |
| Illumination | Illuminated - Blue | Illuminated - Yellow, Illuminated, Illuminated - Blue |
| Panel Cutout Dimensions | 30.5 mm | 22.3 - 30.5 mm |
| Requires | Illumination Source, Contact Block(s) | Illumination Source, Contact Block(s) |
| Type | Momentary | Momentary |
704.229 Series
CONFIG SW BODY PUSHBUTTON ILLUM
| Part | Illumination | Panel Cutout Dimensions | Actuator Type | Requires | Type | (Select First, Then Apply Filters) Compatible Series |
|---|---|---|---|---|---|---|
EAO 704.229.400 | Illuminated - Yellow | 30.5 mm | Pushbutton, Square | Contact Block(s), Illumination Source | Momentary | 04, EAO |
EAO 704.229.200 | 30.5 mm | Pushbutton, Square | Contact Block(s), Illumination Source | Momentary | 04, EAO | |
EAO 704.229.2 | 22.3 mm | Pushbutton, Square | Contact Block(s), Illumination Source | Momentary | 04, EAO | |
EAO 704.229.700 | Illuminated | 30.5 mm | Pushbutton, Square | Contact Block(s), Illumination Source | Momentary | 04, EAO |
EAO 704.229.600 | Illuminated - Blue | 30.5 mm | Pushbutton, Square | Contact Block(s), Illumination Source | Momentary | 04, EAO |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.77 | |
| 10 | $ 28.91 | |||
| 25 | $ 27.57 | |||
| 50 | $ 25.72 | |||
| 100 | $ 24.71 | |||
| 250 | $ 23.03 | |||
Description
General part information
704.229 Series
Configurable Switch Body Pushbutton, Square Illuminated - Blue
