PNB-1/2RC

Active

SAB North America

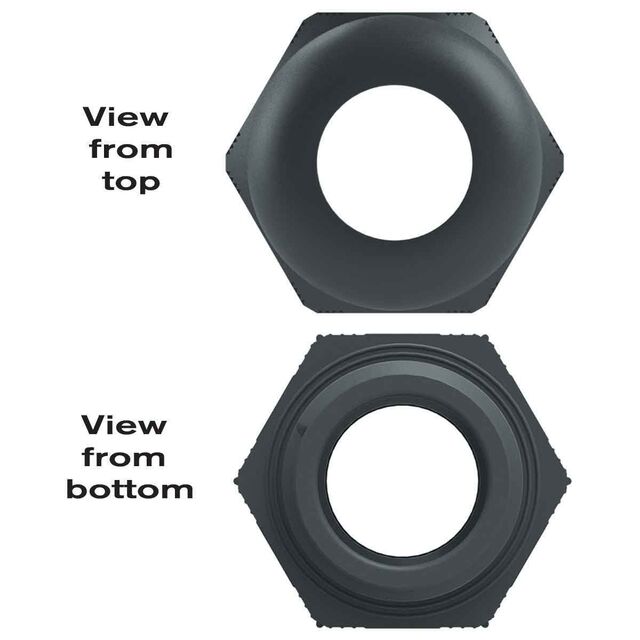

CABLE GLAND 7-12MM 1/2" NPT

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 7-12MM 1/2" NPT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 1/2" NPT Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PNB-1/2RC	PNB-1 Series

Color	Black	Black
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	-	14 mm
Outside Cable Diameter (Max)	-	0.551 "
Outside Cable Diameter (Max)	-	9 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in	0.472 - 0.787 "
Outside Cable Diameter (Max) [Max] [diameter]	12 mm	0.354 - 20 mm
Outside Cable Diameter (Min)	7 mm	7 mm
Outside Cable Diameter (Min)	-	6 - 12 mm
Outside Cable Diameter (Min)	-	5 mm
Outside Cable Diameter (Min)	-	0.197 in
Outside Cable Diameter (Min) [Min] [diameter]	0.276 in	0.236 - 0.472 in
Panel Hole Size	0.84 in	0.84 in
Panel Hole Size	21.3 mm	21.3 mm
Panel Hole Size	-	1.315 in
Panel Hole Size	-	33.4 mm
Thread Length	0.433 in	0.433 - 0.709 in
Thread Length	11 mm	11 - 18.01 mm
Thread Size	1/2" NPT	1" NPT, 1/2" NPT
Type	Cable Gland	Cable Gland

CABLE GLAND 12-20MM 1" NPT

Part	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Color	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]
SAB North America PNB-1R	1" NPT	12 mm	0.472 in	1.315 in	33.4 mm	Black	0.709 in	18.01 mm	0.787 "	20 mm	Cable Gland	IP68 - Dust Tight, Waterproof	100 °C	-20 C
SAB North America PNB-1/2	1/2" NPT	6 mm	0.236 in			Black	0.591 in	15 mm	0.472 in	12 mm	Cable Gland	IP68 - Dust Tight, Waterproof	100 °C	-20 C	0.84 in	21.3 mm
SAB North America PNB-1/2C	1/2" NPT	10 mm	0.394 in			Black	0.433 in	11 mm			Cable Gland	IP68 - Dust Tight, Waterproof	100 °C	-20 C	0.84 in	21.3 mm	14 mm	0.551 "
SAB North America PNB-1/2RC	1/2" NPT		0.276 in			Black	0.433 in	11 mm	0.472 in	12 mm	Cable Gland	IP68 - Dust Tight, Waterproof	100 °C	-20 C	0.84 in	21.3 mm			7 mm
SAB North America PNB-1/2R	1/2" NPT					Black	0.591 in	15 mm		0.354 in	Cable Gland	IP68 - Dust Tight, Waterproof	100 °C	-20 C	0.84 in	21.3 mm				5 mm	0.197 in	9 mm
