BC-AGS-060905
ActiveBoxco

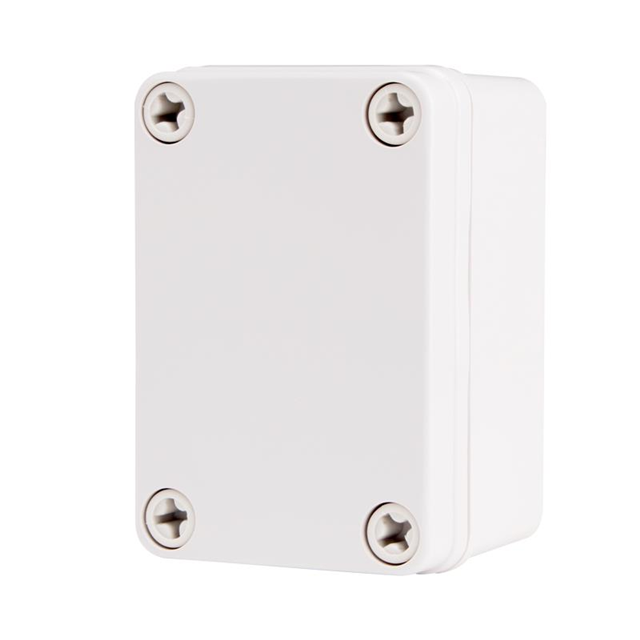

BOX ABS LGT GRY 3.74"L X 2.56"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BC-AGS-060905
ActiveBoxco
BOX ABS LGT GRY 3.74"L X 2.56"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BC-AGS-060905 | BC-AG Series |
|---|---|---|
| Area (L x W) | 9.57 in˛ | 7.76 - 244 in˛ |
| Area (L x W) | 61.8 cm˛ | 9.92 - 1575 cm˛ |
| Area (L x W) | - | 140 in˛ |
| Area (L x W) | - | 122 - 518 in˛ |
| Area (L x W) | - | 784 - 3339 cm˛ |
| Area (L x W) | - | 64 cm˛ |
| Area (L x W) | - | 330 in˛ |
| Area (L x W) | - | 2128 cm˛ |
| Color | Light Gray | Grayish Blue, Light Gray |
| Container Type | Box | Junction Box, Box |
| Design | Lift-Off Screw Cover | Lift-Off Screw Cover, Stainless Steel Latch, Hinged Door |
| Features | Sealing Gasket, Wall Mount | Sealing Gasket, Latches, Hinged, Lockable, Mounting Brackets, Wall Mount |
| Height | - | 1.693 in |
| Height | - | 43 mm |
| Height | - | 150 mm |
| Height [z] | 2.165 in | 2.165 - 10.039 in |
| Height [z] | 55 mm | 5.906 - 255 in |
| Material | Plastic, ABS | Plastic, ABS |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Ratings | NEMA 6, IP66, UL 508A, NEMA 4X, IP67 | NEMA 4X, NEMA 6, IP66, IP67, UL 508A |
| Size / Dimension | - | 100 - 200 mm |
| Size / Dimension | - | 200 - 250 mm |
| Size / Dimension [x] | 95 mm | 7.874 - 730 mm |
| Size / Dimension [x] | 3.74 " | 3.15 - 28.74 in |
| Size / Dimension [y] | 65 mm | 5.906 - 530 mm |
| Size / Dimension [y] | 2.559 in | 2.165 - 20.866 in |
| Thickness | - | 4.5 mm |
| Thickness | - | 0.177 in |
| Thickness | - | 0.146 in |
| Thickness | - | 3.7 mm |
BC-AG Series
JUNCT BOX ABS 3.583"L X 2.953"W
| Part | Features | Material Flammability Rating | Design | Ratings | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Color | Material | Height [diameter] | Height [diameter] | Area (L x W) | Area (L x W) | Container Type | Height [z] | Height [z] | Area (L x W) [custom] | Height [z] | Thickness [custom] | Thickness [custom] | Size / Dimension [y] | Size / Dimension [x] | Area (L x W) [custom] | Area (L x W) [custom] | Thickness | Thickness | Area (L x W) | Area (L x W) [x] | Area (L x W) [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Boxco BC-ABB-6PT | Sealing Gasket | UL94 HB | Lift-Off Screw Cover | IP66, IP67, NEMA 4X, NEMA 6 | 3.583 in | 91 mm | 2.953 in | 75 mm | Grayish Blue | Plastic, ABS | 1.693 in | 43 mm | 10.6 in˛ | 68 cm˛ | Junction Box | |||||||||||||||
Boxco BC-AGG-6P | Sealing Gasket | UL94 HB | Lift-Off Screw Cover | IP66, IP67, NEMA 4X, NEMA 6 | 3.583 in | 91 mm | 2.953 in | 75 mm | Light Gray | Plastic, ABS | 1.693 in | 43 mm | 10.6 in˛ | 68 cm˛ | Junction Box | |||||||||||||||
Boxco BC-AGP-151512 | Hinged, Latches, Lockable, Sealing Gasket | UL94 HB | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | 5.906 in | 150 mm | 5.906 " | 150 mm | Light Gray | Plastic, ABS | 34.9 in˛ | 225 cm² | Box | |||||||||||||||||
Boxco BC-ABB-4P | Sealing Gasket | UL94 HB | Lift-Off Screw Cover | IP66, IP67, NEMA 4X, NEMA 6 | 3.583 in | 91 mm | 2.165 in | 55 mm | Grayish Blue | Plastic, ABS | 1.693 in | 43 mm | 7.76 in˛ | 50 cm˛ | Junction Box | |||||||||||||||
Boxco BC-AGP-303015 | Hinged, Latches, Lockable, Sealing Gasket | UL94 HB | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | 11.811 in | 300 mm | 11.811 " | 300 mm | Light Gray | Plastic, ABS | 900 cm² | Box | 5.906 in | 150 mm | 140 in˛ | |||||||||||||||
Boxco BC-AGP-162113 | Hinged, Latches, Lockable, Sealing Gasket | UL94 HB | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | 8.268 in | 210 mm | 6.299 in | 160 mm | Light Gray | Plastic, ABS | 52.1 in˛ | 336 cm˛ | Box | 130 mm | 5.118 in | |||||||||||||||
Boxco BC-AGP-507018 | Hinged, Latches, Lockable, Mounting Brackets, Sealing Gasket | UL94 HB | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | 28.74 in | 730 mm | 20.866 in | 530 mm | Light Gray | Plastic, ABS | Box | 185 mm | 7.283 in | 4.5 mm | 0.177 in | |||||||||||||||
Boxco BC-AGS-102007 | Sealing Gasket, Wall Mount | UL94 HB | Lift-Off Screw Cover | IP66, IP67, NEMA 4X, NEMA 6, UL 508A | 7.874 in | 200 mm | 3.937 in | Light Gray | Plastic, ABS | Box | 70 mm | 2.756 " | 100 mm | |||||||||||||||||
Boxco BC-AGP-112607 | Hinged, Latches, Lockable, Sealing Gasket | UL94 HB | Hinged Door, Stainless Steel Latch | IP66, IP67, NEMA 4X, NEMA 6 | 10.236 inches | 260 mm | 4.331 in | Light Gray | Plastic, ABS | 44.3 in˛ | 286 cm˛ | Box | 75 mm | 2.953 in | 110 mm | |||||||||||||||
Boxco BC-AGG-6PH | Sealing Gasket | UL94 HB | Lift-Off Screw Cover | IP66, IP67, NEMA 4X, NEMA 6 | 3.583 in | 91 mm | 2.165 in | 55 mm | Light Gray | Plastic, ABS | 1.693 in | 43 mm | 7.76 in˛ | 50 cm˛ | Junction Box |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.75 | |
Description
General part information
BC-AG Series
Box Plastic, ABS Light Gray Lift-Off Screw Cover 3.740" L x 2.559" W (95.00mm x 65.00mm) X 2.165" (55.00mm)
Documents
Technical documentation and resources
