G-410-C8012
ActiveAearo Technologies LLC, a 3M company

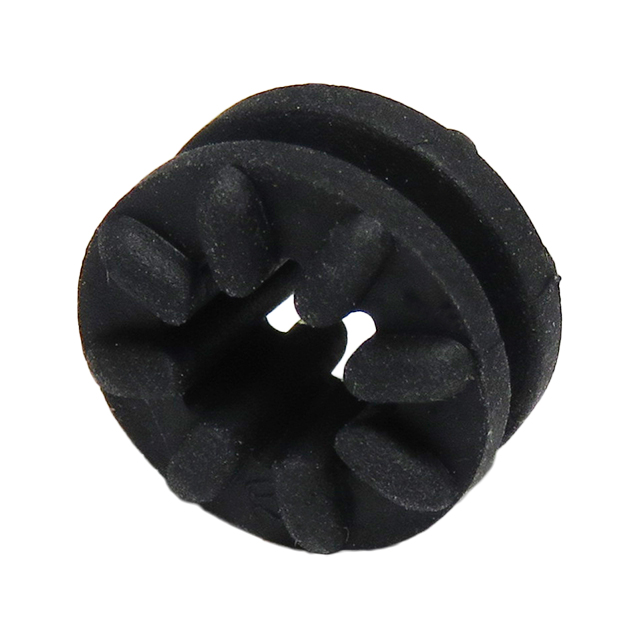

SCREW GROMMET THERMOPLASTIC BLK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G-410-C8012
ActiveAearo Technologies LLC, a 3M company
SCREW GROMMET THERMOPLASTIC BLK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | G-410-C8012 | G-410 Series |
|---|---|---|
| Color | Black | Black, Blue, Natural |
| Head Diameter [diameter] | 0.377 " | 0.377 " |
| Head Diameter [diameter] | 9.58 mm | 9.58 mm |
| Head Height | 5.84 mm | 5.84 mm |
| Head Height [z] | 0.23 in | 0.23 in |
| Material | Thermoplastic | Thermoplastic, Synthetic Rubber |
| Mounting Hole Diameter [diameter] | 0.25 in | 0.25 in |
| Mounting Hole Diameter [diameter] | 6.35 mm | 6.35 mm |
| Mounting Hole Diameter [diameter] | 0.25 in | 0.25 in |
G-410 Series
SCREW GROMMET THERMOPLASTIC BLK
| Part | Head Height [z] | Head Height | Color | Material | Head Diameter [diameter] | Head Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|
Aearo Technologies LLC, a 3M company G-410-V2725 | 0.23 in | 5.84 mm | Black | Thermoplastic | 0.377 " | 9.58 mm | 0.25 in | 6.35 mm | 0.25 in |
Aearo Technologies LLC, a 3M company G-410-SL60300 | 0.23 in | 5.84 mm | Black | Synthetic Rubber | 0.377 " | 9.58 mm | 0.25 in | 6.35 mm | 0.25 in |
Aearo Technologies LLC, a 3M company G-410-1 | 0.23 in | 5.84 mm | Blue | Thermoplastic | 0.377 " | 9.58 mm | 0.25 in | 6.35 mm | 0.25 in |
Aearo Technologies LLC, a 3M company G-410-V2575 | 0.23 in | 5.84 mm | Black | Thermoplastic | 0.377 " | 9.58 mm | 0.25 in | 6.35 mm | 0.25 in |
Aearo Technologies LLC, a 3M company G-410-SL20300 | 0.23 in | 5.84 mm | Black | Synthetic Rubber | 0.377 " | 9.58 mm | 0.25 in | 6.35 mm | 0.25 in |
Aearo Technologies LLC, a 3M company G-410-V2599 | 0.23 in | 5.84 mm | Natural | Thermoplastic | 0.377 " | 9.58 mm | 0.25 in | 6.35 mm | 0.25 in |
Aearo Technologies LLC, a 3M company G-410-V2525 | 0.23 in | 5.84 mm | Black | Thermoplastic | 0.377 " | 9.58 mm | 0.25 in | 6.35 mm | 0.25 in |
Aearo Technologies LLC, a 3M company G-410-2 | 0.23 in | 5.84 mm | Thermoplastic | 0.377 " | 9.58 mm | 0.25 in | 6.35 mm | 0.25 in | |
Aearo Technologies LLC, a 3M company G-410-SL50300 | 0.23 in | 5.84 mm | Black | Synthetic Rubber | 0.377 " | 9.58 mm | 0.25 in | 6.35 mm | 0.25 in |
Aearo Technologies LLC, a 3M company G-410-V2590 | 0.23 in | 5.84 mm | Black | Thermoplastic | 0.377 " | 9.58 mm | 0.25 in | 6.35 mm | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.84 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.62 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.48 | |||
Description
General part information
G-410 Series
Screw Grommet Thermoplastic Black
Documents
Technical documentation and resources
