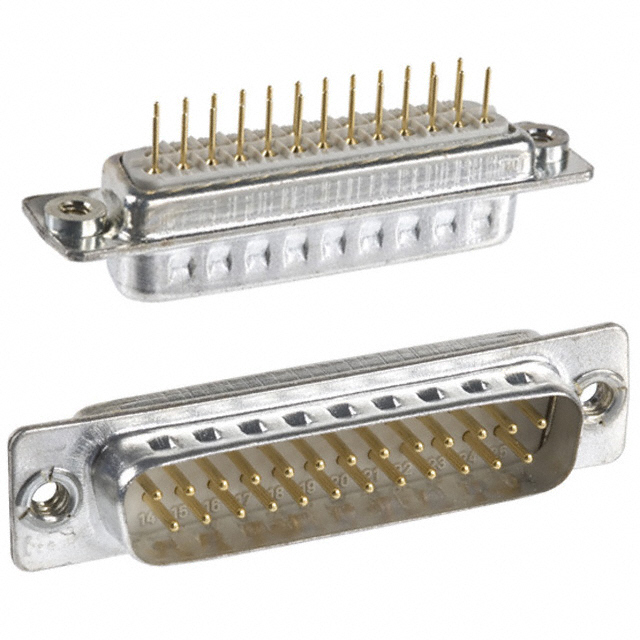

172-025-112R001
ObsoleteMH Connectors
CONN D-SUB PLUG 25P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
172-025-112R001
ObsoleteMH Connectors
CONN D-SUB PLUG 25P PNL MNT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 172-025-112R001 |
|---|---|
| Color | Beige |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Polyester |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Rows | 2 |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.98 | |
| 10 | $ 5.34 | |||
| 25 | $ 4.82 | |||
| 40 | $ 4.58 | |||
| 80 | $ 4.25 | |||
| 230 | $ 3.80 | |||
| 440 | $ 3.56 | |||
Description
General part information
172-025-112R001
25 Position D-Sub Plug, Male Pins Connector
