1415177

Active

Phoenix Contact

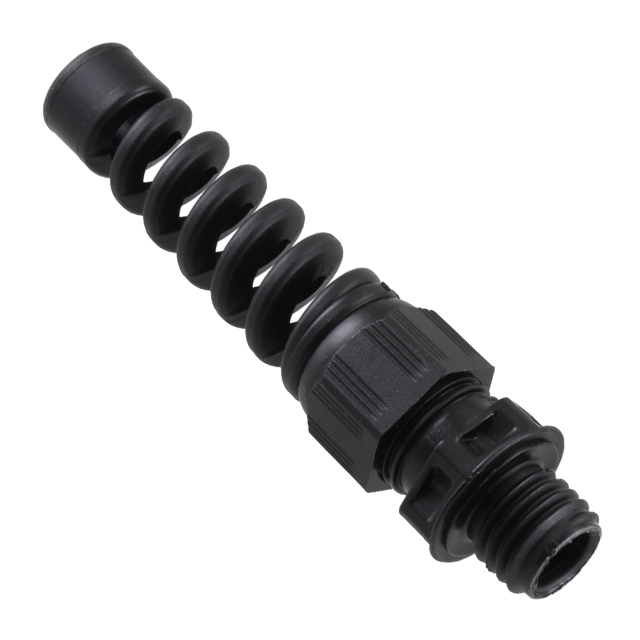

CABLE GLAND 3-7MM M12 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 3-7MM M12 POLYAMIDE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1415177	G-INB-M12 Series

Color	Black	Light Gray, Black
Includes	Strain Relief, O-Ring, Seal	Strain Relief, O-Ring, Seal
Ingress Protection	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	IP68/IP69 - Dust Tight, Water Resistant, Waterproof
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	7 mm	7 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.276 in	0.276 in
Outside Cable Diameter (Min) [Min] [diameter]	3 mm	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in	0.118 in
Thread Length	0.354 in	0.354 in
Thread Length	9 mm	9 mm
Thread Size	M12	M12
Type	Cable Gland	Cable Gland

CABLE GLAND 3-7MM M12 POLYAMIDE

Part	Includes	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Type	Ingress Protection	Thread Size
Phoenix Contact 1415171	O-Ring, Seal, Strain Relief	0.354 in	9 mm	100 °C	-40 °C	3 mm	0.118 in	Polyamide (PA), Nylon	7 mm	0.276 in	Light Gray	Cable Gland	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	M12
Phoenix Contact 1415177	O-Ring, Seal, Strain Relief	0.354 in	9 mm	100 °C	-40 °C	3 mm	0.118 in	Polyamide (PA), Nylon	7 mm	0.276 in	Black	Cable Gland	IP68/IP69 - Dust Tight, Water Resistant, Waterproof	M12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M12 Black

Technical documentation and resources
