CDRH12D58/ANP-100MC
ActiveSumida America Components Inc.
FIXED IND 10UH 3.8A 22 MOHM SMD
CDRH12D58/ANP-100MC
ActiveSumida America Components Inc.
FIXED IND 10UH 3.8A 22 MOHM SMD
Description
General part information
CDRH12D58/ANP-100MC

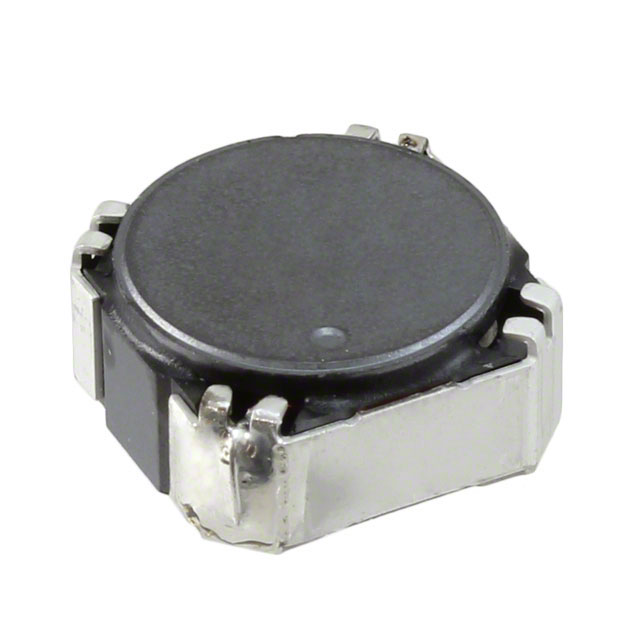

10 µH Shielded Inductor 3.8 A 22mOhm Max Nonstandard, 4 Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH12D58/ANP-100MC |
|---|---|
| Current Rating | 3.8 A |
| DC Resistance (DCR) (Max) | 22 mOhm |
| Height - Seated (Max) | 0.236 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Lead, 4 Leads |
| Package Name | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.472 in |
| Tolerance | 20 % |
