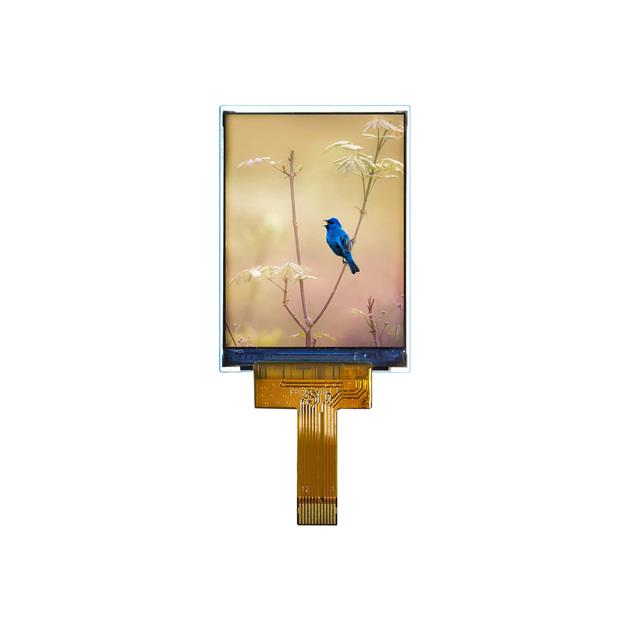

ATM0200B3

Active

AZ Displays

2" MCU/SPI 240X320 800 NITS IPS

Search across all available documentation for this part.

Active

AZ Displays

2" MCU/SPI 240X320 800 NITS IPS

Technical Specifications

Parameters and characteristics for this part

Specification	ATM0200B3

Background Color	Black
Backlight	LED
Controller Type	ST7789V2
Diagonal Screen Size	50.8 mm
Diagonal Screen Size	2 in
Display Mode	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)
Dot Pitch [y]	0.04 mm
Dot Pitch [z]	0.13 mm
Dot Pixels [x]	240 pixels
Dot Pixels [y]	320
Graphics Color	Green, Red, Blue
Interface	SPI
Viewing Area [y]	64 mm
Viewing Area [z]	35.5 mm

2" MCU/SPI 240X320 800 NITS IPS

Part	Background Color	Display Mode	Graphics Color	Diagonal Screen Size	Diagonal Screen Size	Viewing Area [y]	Viewing Area [z]	Backlight	Dot Pixels [y]	Dot Pixels [x]	Interface	Display Type	Dot Pitch [y]	Dot Pitch [z]	Controller Type
AZ Displays ATM0200B3	Black	Transmissive	Blue, Green, Red	50.8 mm	2 in	64 mm	35.5 mm	LED	320	240 pixels	SPI	TFT - Color, IPS (In-Plane Switching)	0.04 mm	0.13 mm	ST7789V2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) SPI 2" (50.80mm) 240 x 320
