T4113002081-000
ActiveTE Connectivity AMP Connectors

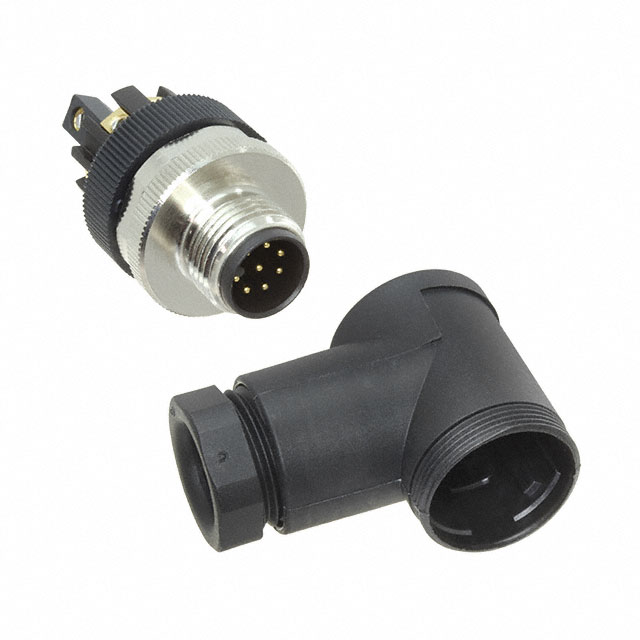

CONN RCPT MALE 8POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4113002081-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 8POS GOLD SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4113002081-000 | T41130 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Backshell Material, Plating | Glass Filled, Polybutylene Terephthalate (PBT) | Glass Filled, Polybutylene Terephthalate (PBT), Nickel, Brass, Zinc Die Cast |
| Cable Opening | - | 4 - 6 mm |
| Cable Opening | - | 0.157 - 0.236 in |
| Cable Opening [Max] [custom] | 8 mm | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in | 0.236 in |
| Color | Black, Silver | Black, Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Plug |
| Contact Finish - Mating | Gold | Gold, Silver |
| Contact Finish Thickness - Mating | 3 µin | 3 - 80 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 - 2.03 µm |
| Contact Material | Zinc Alloy | Zinc Alloy, Brass, Bronze |
| Current Rating (Amps) | 2 A | 2 - 4 A |
| Features | Backshell | Backshell, Coupling Nut |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 8 | 2 - 8 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A, T |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass | Brass, Zinc Die Cast |
| Shell Size - Insert | M12-8 | M12-4, M12-2, M12-5, M12-8, M12-3 |
| Shielding | Unshielded | Unshielded, Shielded |
| Termination | Screw | Screw |
| Voltage Rating | 30 VDC | 30 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.70 | |
| 10 | $ 9.68 | |||
| 25 | $ 9.42 | |||
| 50 | $ 9.06 | |||
| 100 | $ 8.40 | |||
| 250 | $ 8.35 | |||
| 500 | $ 8.04 | |||
| 1000 | $ 7.17 | |||
T41130 Series
CONN RCPT MALE 4POS GOLD SCREW
| Part | Color | Mounting Type | Contact Material | Backshell Material, Plating | Insert Material | Applications | Ingress Protection | Voltage Rating | Termination | Shell Finish | Primary Material | Features | Cable Opening [diameter] | Cable Opening [diameter] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Finish - Mating | Shielding | Shell Size - Insert | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Orientation | Shell Material | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4113001041-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Zinc Alloy | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Nickel | Metal | Backshell | 4 mm, 6 mm | 0.157 in, 0.236 in | 3 µin | 0.076 µm | 4 | Gold | Unshielded | M12-4 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | ||||
TE Connectivity AMP Connectors T4113002041-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Zinc Alloy | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Nickel | Metal | Backshell | 3 µin | 0.076 µm | 4 | Gold | Unshielded | M12-4 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4113002021-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Zinc Alloy | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Nickel | Metal | Backshell | 3 µin | 0.076 µm | 2 | Gold | Unshielded | M12-2 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4113001022-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Brass | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Nickel | Metal | Backshell | 4 mm, 6 mm | 0.157 in, 0.236 in | 80 µin | 2.03 µm | 2 | Silver | Unshielded | M12-2 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | ||||
TE Connectivity AMP Connectors T4113012051-000 | Silver | Free Hanging (In-Line), Right Angle | Zinc Alloy | Brass, Nickel | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 60 VDC | Screw | Nickel | Metal | Backshell | 3 µin | 0.076 µm | Gold | Shielded | M12-5 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4113001052-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Brass | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 60 VDC | Screw | Nickel | Metal | Backshell | 4 mm, 6 mm | 0.157 in, 0.236 in | 80 µin | 2.03 µm | Silver | Unshielded | M12-5 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | |||||
TE Connectivity AMP Connectors T4113011081-000 | Silver | Free Hanging (In-Line), Right Angle | Zinc Alloy | Brass, Nickel | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 30 VDC | Screw | Nickel | Metal | Backshell | 4 mm, 6 mm | 0.157 in, 0.236 in | 3 µin | 0.076 µm | 8 | Gold | Shielded | M12-8 | Male Pins, Receptacle | 85 °C | -40 °C | 2 A | A | Brass | ||||
TE Connectivity AMP Connectors T4113001032-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Brass | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Nickel | Metal | Backshell | 4 mm, 6 mm | 0.157 in, 0.236 in | 80 µin | 2.03 µm | Silver | Unshielded | M12-3 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | |||||
TE Connectivity AMP Connectors T4113011031-000 | Silver | Free Hanging (In-Line), Right Angle | Brass | Brass, Nickel | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Nickel | Metal | Backshell | 4 mm, 6 mm | 0.157 in, 0.236 in | 3 µin | 0.076 µm | Gold | Shielded | M12-3 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | |||||
TE Connectivity AMP Connectors T4113012021-000 | Silver | Free Hanging (In-Line), Right Angle | Brass | Brass, Nickel | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Nickel | Metal | Backshell | 3 µin | 0.076 µm | 2 | Gold | Shielded | M12-2 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4113001081-000 | Silver | Free Hanging (In-Line), Right Angle | Bronze | Nickel, Zinc Die Cast | Nylon, Polyamide (PA) | IP67 - Dust Tight, Waterproof | 30 VDC | Screw | Nickel | Metal | Backshell, Coupling Nut | 4 mm, 6 mm | 0.157 in, 0.236 in | 8 | Gold | Unshielded | M12-8 | Male Pins, Plug | 85 °C | -40 °C | 2 A | T | Zinc Die Cast | |||||||
TE Connectivity AMP Connectors T4113002052-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Brass | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 60 VDC | Screw | Nickel | Metal | Backshell | 80 µin | 2.03 µm | Silver | Unshielded | M12-5 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4113002082-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Brass | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 30 VDC | Screw | Nickel | Metal | Backshell | 80 µin | 2.03 µm | 8 | Silver | Unshielded | M12-8 | Male Pins, Receptacle | 85 °C | -40 °C | 2 A | A | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4113002081-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Zinc Alloy | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 30 VDC | Screw | Nickel | Metal | Backshell | 3 µin | 0.076 µm | 8 | Gold | Unshielded | M12-8 | Male Pins, Receptacle | 85 °C | -40 °C | 2 A | A | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4113002042-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Brass | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Nickel | Metal | Backshell | 80 µin | 2.03 µm | 4 | Silver | Unshielded | M12-4 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | ||
TE Connectivity AMP Connectors T4113001042-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Brass | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Nickel | Metal | Backshell | 4 mm, 6 mm | 0.157 in, 0.236 in | 80 µin | 2.03 µm | 4 | Silver | Unshielded | M12-4 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | ||||
TE Connectivity AMP Connectors T4113002051-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Zinc Alloy | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 60 VDC | Screw | Nickel | Metal | Backshell | 3 µin | 0.076 µm | Gold | Unshielded | M12-5 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in | |||
TE Connectivity AMP Connectors T4113002022-000 | Black, Silver | Free Hanging (In-Line), Right Angle | Brass | Glass Filled, Polybutylene Terephthalate (PBT) | Nylon, Polyamide (PA) | Industrial | IP67 - Dust Tight, Waterproof | 250 VDC | Screw | Nickel | Metal | Backshell | 80 µin | 2.03 µm | 2 | Silver | Unshielded | M12-2 | Male Pins, Receptacle | 85 °C | -40 °C | 4 A | A | Brass | 8 mm | 6 mm | 0.315 in | 0.236 in |
Description
General part information
T41130 Series
8 Position Circular Connector Receptacle, Male Pins Screw
