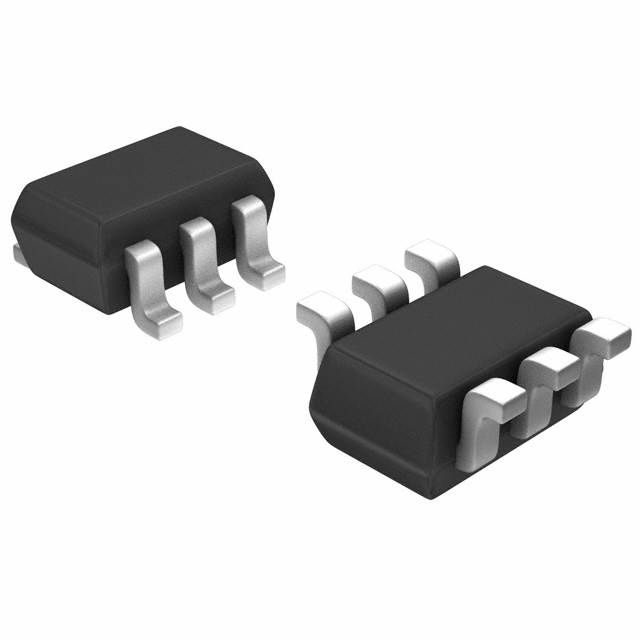

AS1101-T

Obsolete

ams-OSRAM USA INC.

IC LED DRVR LIN PWM 80MA SC70-6

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

IC LED DRVR LIN PWM 80MA SC70-6

Technical Specifications

Parameters and characteristics for this part

IC LED DRVR LIN PWM 80MA SC70-6

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Applications	Number of Outputs	Dimming	Type	Current - Output / Channel	Voltage - Supply (Min) [Min]	Internal Switch(s)	Voltage - Supply (Max) [Max]	Supplier Device Package	Voltage - Output [Max]	Voltage - Output [Min]
ams-OSRAM USA INC. AS1101-T	Surface Mount	85 °C	-40 °C	6-TSSOP, SC-88, SOT-363	Backlight	2	Analog, PWM	Linear	80 mA	2.2 V		3.6 V	SC-70-6	3.6 V	0.15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver IC 2 Output Linear Analog, PWM Dimming 80mA SC-70-6
