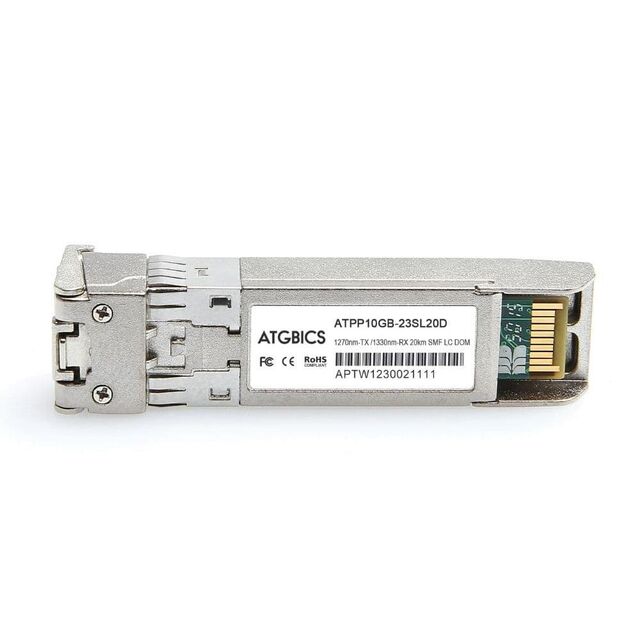

EX-SFP-10GE-BX23-C
ActiveATGBICS
COMPATIBLE SFP+ 10G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EX-SFP-10GE-BX23-C
ActiveATGBICS
COMPATIBLE SFP+ 10G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EX-SFP-10GE-BX23-C | EX-SFP-10GE Series |
|---|---|---|
| Applications | General Purpose, Networking | General Purpose, Networking, Ethernet |
| Cable Connectors | - | SFP+ to SFP+ |
| Cable Type | - | Round |
| Color | - | Aqua, Orange, Black |
| Connector Type | LC Simplex | LC Duplex, LC Simplex, Plug to Plug, RJ45, LC |
| Data Rate | 10 Gbps | 10 Gbps |
| Fastening Type | - | Push-Pull |
| Features | - | Active, Passive |
| Gender | - | Male to Male |
| Length | - | 1 - 500 m |
| Length | - | 1.64 - 49.21 ft |
| Length | - | 10 - 30 m |
| Length | - | 32.81 - 98.43 ft |
| Mounting Type | Pluggable, SFP+ | Pluggable, SFP+ |
| Operating Temperature | - | 70 °C |
| Operating Temperature | - | 0 °C |
| Shielding | - | Unshielded |
| Usage | - | Data Center Server Rack, Ethernet, Network |
| Voltage - Supply | 3.3 V | 3.3 V |
| Wavelength | - | 850 - 1550 nm |
| Wavelength [Max] | 1330 nm | 1330 nm |
| Wavelength [Min] | 1270 nm | 1270 nm |
| Wire Gauge | - | 24 - 30 AWG |
EX-SFP-10GE Series
COMPATIBLE SFP+ 10G
| Part | Applications | Mounting Type | Voltage - Supply | Wavelength | Connector Type | Data Rate | Wavelength [Max] | Wavelength [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Shielding | Fastening Type | Features | Usage | Length [x] | Length [x] | Cable Connectors | Gender | Color | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ATGBICS EX-SFP-10GE-ER-C | General Purpose, Networking | Pluggable, SFP+ | 3.3 V | 1550 nm | LC Duplex | 10 Gbps | |||||||||||||||||
ATGBICS EX-SFP-10GE-BX23-C | General Purpose, Networking | Pluggable, SFP+ | 3.3 V | LC Simplex | 10 Gbps | 1330 nm | 1270 nm | ||||||||||||||||
ATGBICS EX-SFP-10GE-BX32-C | General Purpose, Networking | Pluggable, SFP+ | 3.3 V | 1270 nm, 1330 nm | LC Simplex | 10 Gbps | |||||||||||||||||
ATGBICS EX-SFP-10GE-AOC-2M-C | Plug to Plug | 70 °C | 0 °C | Round | Unshielded | Push-Pull | Active | Data Center Server Rack, Ethernet, Network | 2 m | 6.56 ft | SFP+ to SFP+ | Male to Male | |||||||||||
ATGBICS EX-SFP-10GE-AOC-3M-C | Plug to Plug | 70 °C | 0 °C | Round | Unshielded | Push-Pull | Active | Data Center Server Rack, Ethernet, Network | 3 m | 9.84 ft | SFP+ to SFP+ | Male to Male | Aqua, Orange | ||||||||||
ATGBICS EX-SFP-10GE-AOC-1M-C | Plug to Plug | 70 °C | 0 °C | Round | Unshielded | Push-Pull | Active | Data Center Server Rack, Ethernet, Network | 1 m | 3.28 ft | SFP+ to SFP+ | Male to Male | Aqua, Orange | ||||||||||
ATGBICS EX-SFP-10GE-DAC-50CM-C | Plug to Plug | 70 °C | 0 °C | Round | Unshielded | Push-Pull | Passive | Data Center Server Rack, Ethernet, Network | 500 mm | 1.64 ft | SFP+ to SFP+ | Male to Male | Black | 30 AWG | |||||||||
ATGBICS EX-SFP-10GE-DAC-5M-C | Plug to Plug | 70 °C | 0 °C | Round | Unshielded | Push-Pull | Passive | Data Center Server Rack, Ethernet, Network | SFP+ to SFP+ | Male to Male | Black | 24 AWG | |||||||||||
ATGBICS EX-SFP-10GE-AOC-30M-C | Plug to Plug | 70 °C | 0 °C | Round | Unshielded | Push-Pull | Active | Data Center Server Rack, Ethernet, Network | SFP+ to SFP+ | Male to Male | Aqua, Orange | 30 m | 98.43 ft | ||||||||||
ATGBICS EX-SFP-10GE-T-C | Ethernet | Pluggable, SFP+ | 3.3 V | RJ45 | 10 Gbps |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 49.00 | |
| 50 | $ 46.60 | |||
| 150 | $ 44.10 | |||
| 1000 | $ 41.70 | |||
Description
General part information
EX-SFP-10GE Series
Transceiver Module Networking, General Purpose 10Gbps 1270/1330nm 3.3V LC Simplex Pluggable, SFP+
