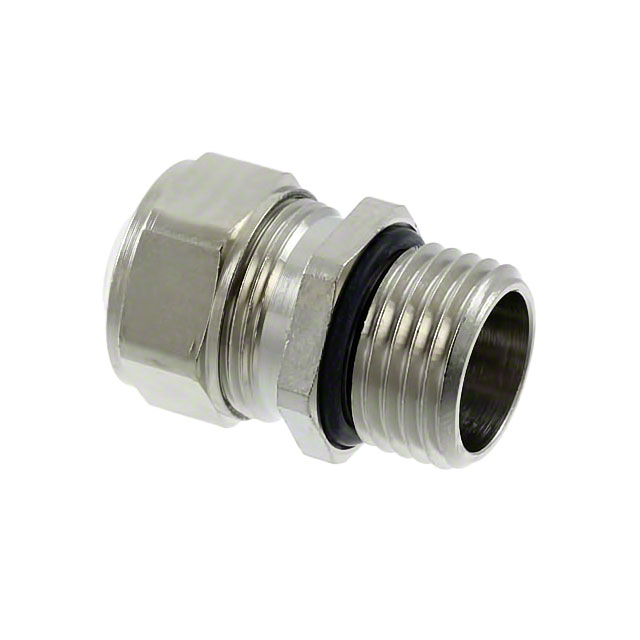

CABLE GLAND 6-8MM M16 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AE 2014 Full Line Catalog

A1100.17.080

Active

American Electrical Inc.

CABLE GLAND 6-8MM M16 BRASS

Deep-Dive with AI

DocumentsDatasheet AE 2014 Full Line Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1100.17.080	1100 Series

Color	Silver	Silver
Includes	Strain Relief, O-Ring, Seal	Strain Relief, O-Ring, Seal
Ingress Protection	IP68, IP69K	IP68, IP69K
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	0.413 - 0.807 in
Outside Cable Diameter (Max)	-	0.217 - 20.5 mm
Outside Cable Diameter (Max)	-	5.5 mm
Outside Cable Diameter (Max) [Max] [diameter]	8 mm	4 - 27.5 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in	0.157 - 1.083 in
Outside Cable Diameter (Min)	-	0.138 - 0.906 in
Outside Cable Diameter (Min)	-	3.5 - 23 mm
Outside Cable Diameter (Min)	-	12.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm	3 - 14 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in	0.118 - 0.551 in
Panel Hole Size	0.63 in	0.598 - 1.26 in
Panel Hole Size	16 mm	1.457 - 32 mm
Panel Hole Size	-	37 mm
Thread Length	10 mm	10 - 13 mm
Thread Length	0.394 in	0.394 - 0.512 in
Thread Size	M16x1.5	M10x1.5, M20x1.5, PG9, PG21, M16x1.5, M25x1.5, PG11, M32x1.5, PG16, PG29, PG13, M8x1.25
Type	Cable Gland	Cable Gland

1100 Series

CABLE GLAND 4-6MM M10 BRASS

Part	Thread Size	Color	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min)
American Electrical Inc. A1100.10.060	M10x1.5	Silver	10 mm	0.394 in	0.157 in	4 mm	100 °C	-40 °C	IP68, IP69K	O-Ring, Seal, Strain Relief	0.236 in	6 mm	Brass, Nickel Plated	Cable Gland
American Electrical Inc. A1100.20.150	M20x1.5	Silver	10 mm	0.394 in			100 °C	-40 °C	IP68, IP69K	O-Ring, Seal, Strain Relief	0.591 in	15 mm	Brass, Nickel Plated	Cable Gland	0.433 in	11 mm	0.787 in	20 mm
American Electrical Inc. A1100.09.060	PG9	Silver	10 mm	0.394 in			100 °C	-40 °C	IP68, IP69K	O-Ring, Seal	0.236 in	6 mm	Brass, Nickel Plated	Cable Gland	0.177 in	4.5 mm	0.598 in	15.2 mm
American Electrical Inc. A1100.21.205	PG21	Silver	12 mm	0.472 in	0.63 in	16 mm	100 °C	-40 °C	IP68, IP69K	O-Ring, Seal			Brass, Nickel Plated	Cable Gland			1.114 in	28.3 mm	0.807 in	20.5 mm
American Electrical Inc. A1100.17.080	M16x1.5	Silver	10 mm	0.394 in			100 °C	-40 °C	IP68, IP69K	O-Ring, Seal, Strain Relief	0.315 in	8 mm	Brass, Nickel Plated	Cable Gland	0.236 in	6 mm	0.63 in	16 mm
American Electrical Inc. A1100.25.160	M25x1.5	Silver	11 mm	0.433 in			100 °C	-40 °C	IP68, IP69K	O-Ring, Seal, Strain Relief	0.63 "	16 mm	Brass, Nickel Plated	Cable Gland	0.492 in		0.984 in	25 mm			12.5 mm
American Electrical Inc. A1100.09.045	PG9	Silver	10 mm	0.394 in	0.138 in	3.5 mm	100 °C	-40 °C	IP68, IP69K	O-Ring, Seal	0.177 "	4.5 mm	Brass, Nickel Plated	Cable Gland			0.598 in	15.2 mm
American Electrical Inc. A1100.11.085	PG11	Silver	10 mm	0.394 in			100 °C	-40 °C	IP68, IP69K	O-Ring, Seal	0.335 in	8.5 mm	Brass, Nickel Plated	Cable Gland	0.217 in	5.5 mm	0.732 in	18.6 mm
American Electrical Inc. A1100.32.170	M32x1.5	Silver	13 mm	0.512 in			100 °C	-40 °C	IP68, IP69K	O-Ring, Seal, Strain Relief	0.669 in	16.99 mm	Brass, Nickel Plated	Cable Gland	0.551 in	14 mm	1.26 in	32 mm
American Electrical Inc. A1100.16.080	PG16	Silver	10 mm	0.394 in			100 °C	-40 °C	IP68, IP69K	O-Ring, Seal	0.315 in	8 mm	Brass, Nickel Plated	Cable Gland	0.236 in	6 mm	0.886 in	22.5 mm
