MNU14-187DFIK

Active

FULLY NYLON INSULATED BUTTED SEAM FEMALE DISCONNECT

Search across all available documentation for this part.

Active

FULLY NYLON INSULATED BUTTED SEAM FEMALE DISCONNECT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNU14-187DFIK	MNU14 Series

Color	Blue	Blue
Contact Finish	Tin	Tin
Contact Material	Brass	ETP, Copper, Brass
Diameter - Barrel	-	3.96 mm
Diameter - Barrel	-	0.156 in
Features	Butted Seam	Butted Seam
Gender	Female	Male, Female
Insulation	Fully Insulated	Fully Insulated
Insulation Diameter	3.68 mm	3.68 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Overall [x]	20.57 mm	20.57 - 25.91 mm
Length - Overall [x]	0.81 in	0.81 - 1.02 in
Material - Insulation	-	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Thickness	0.02 "	0.02 - 0.032 in
Tab Thickness	0.51 mm	0.51 - 0.81 mm
Tab Width	4.75 mm	4.75 - 6.35 mm
Tab Width	0.187 in	0.187 - 0.25 in
Terminal Type	Standard	Standard, Female, Receptacle (Socket)
Termination	Crimp	Crimp

CONN QC TAB 14-16AWG 0.250 CRIMP

Part	Gender	Tab Width	Tab Width	Contact Finish	Color	Contact Material	Tab Thickness	Tab Thickness	Insulation	Length - Overall [x]	Length - Overall [x]	Termination	Mounting Type	Terminal Type	Features	Material - Insulation	Insulation Diameter	Insulation Diameter [diameter]	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]
3M MNU14-250DMIX-BOTTLE	Male	6.35 mm	0.25 in	Tin	Blue	Copper, ETP	0.032 in	0.81 mm	Fully Insulated	24.13 mm	0.95 in	Crimp	Free Hanging (In-Line)	Standard	Butted Seam
3M MNU14-180DFIK-A				Tin	Blue	Brass			Fully Insulated	25.91 mm	1.02 in	Crimp		Female, Receptacle (Socket)	Butted Seam	Nylon, Polyamide (PA)	3.68 mm	0.145 "
3M MNU14-156DFIK				Tin	Blue	Brass			Fully Insulated	25.91 mm	1.02 in	Crimp		Female, Receptacle (Socket)		Nylon, Polyamide (PA)			3.96 mm	0.156 in
3M MNU14-250DFIK	Female	6.35 mm	0.25 in	Tin	Blue	Brass	0.032 in	0.81 mm	Fully Insulated	22.1 mm	0.87 in	Crimp	Free Hanging (In-Line)	Standard	Butted Seam		3.68 mm	0.145 "
3M MNU14-187DMIX-BOTTLE	Male	4.75 mm	0.187 in	Tin	Blue	Copper, ETP	0.02 "	0.51 mm	Fully Insulated	22.1 mm	0.87 in	Crimp	Free Hanging (In-Line)	Standard	Butted Seam		3.68 mm	0.145 "
3M MNU14-187DFIK	Female	4.75 mm	0.187 in	Tin	Blue	Brass	0.02 "	0.51 mm	Fully Insulated	20.57 mm	0.81 in	Crimp	Free Hanging (In-Line)	Standard	Butted Seam		3.68 mm	0.145 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

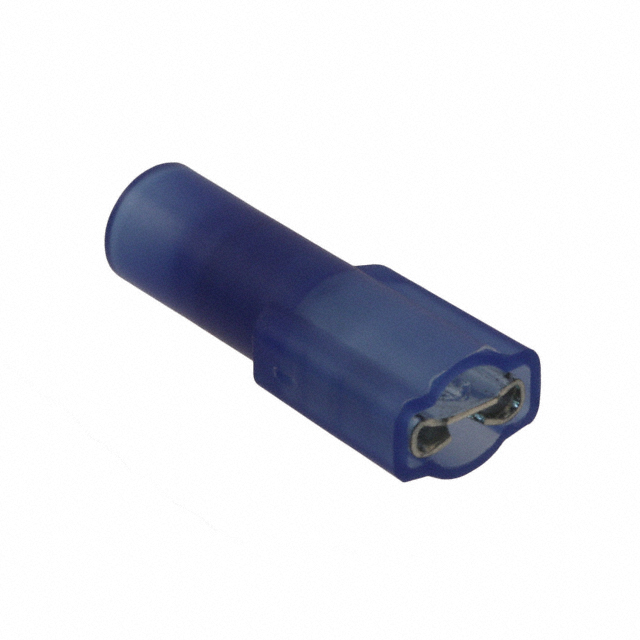

0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
