104361-8
ActiveTE Connectivity AMP Connectors

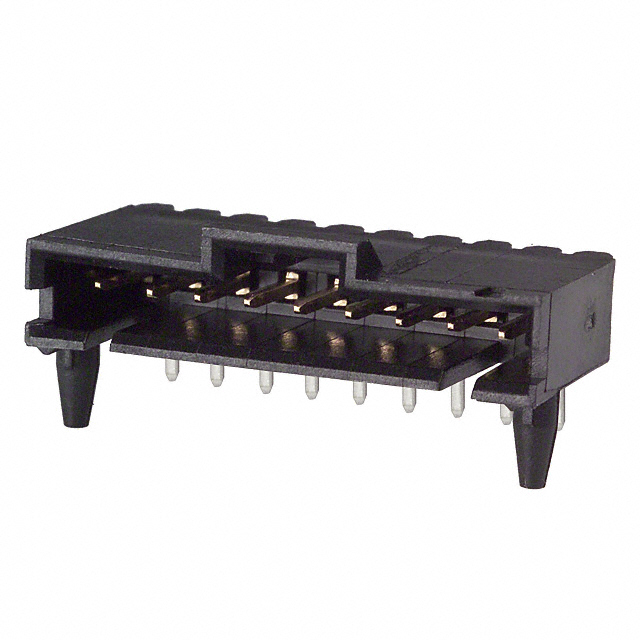

CONN HEADER R/A 9POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
104361-8
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 9POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104361-8 | 104361 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.145 in | 0.145 in |
| Contact Length - Post | 3.68 mm | 3.68 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Lock, Keying Slot | Board Lock, Keying Slot |
| Insulation Color | Black | Black |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 9 | 2 - 20 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1512 | $ 1.57 | |
104361 Series
CONN HEADER R/A 4POS 2.54MM
| Part | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Current Rating (Amps) | Insulation Material | Applications | Contact Material | Contact Length - Post | Contact Length - Post | Style | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Number of Rows | Mounting Type | Insulation Color | Contact Length - Mating [x] | Contact Length - Mating | Material Flammability Rating | Number of Positions | Contact Type | Contact Finish - Mating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-104361-3 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 4 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 1-104361-3 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin-Lead | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 14 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 1-104361-1 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin-Lead | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 12 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 5-104361-6 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 7 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 5-104361-2 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | Male Pin | Gold | Shrouded - 4 Wall | |
TE Connectivity AMP Connectors 104361-8 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin-Lead | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 9 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 6-104361-9 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 20 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 5-104361-7 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 8 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 1-104361-9 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin-Lead | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 20 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 6-104361-4 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 15 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 104361-7 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin-Lead | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 8 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 104361-6 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin-Lead | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 7 | Male Pin | Gold | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 5-104361-4 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | Male Pin | Gold | Shrouded - 4 Wall | |
TE Connectivity AMP Connectors 104361-1 | Board Lock, Keying Slot | 2.54 µm | 100 µin | All | Latch Holder | 0.1 in | 2.54 mm | Square | -65 ░C | 105 ░C | Solder | 3 A | Thermoplastic | Automotive, General Purpose, Medical, Telecommunications | Brass | 0.145 in | 3.68 mm | Board to Board, Cable | Header | 15 µin | 0.38 µm | Tin-Lead | 1 | Through Hole, Right Angle | Black | 0.23 in | 5.84 mm | UL94 V-0 | 2 | Male Pin | Gold | Shrouded - 4 Wall |
Description
General part information
104361 Series
Connector Header Through Hole, Right Angle 9 position 0.100" (2.54mm)
