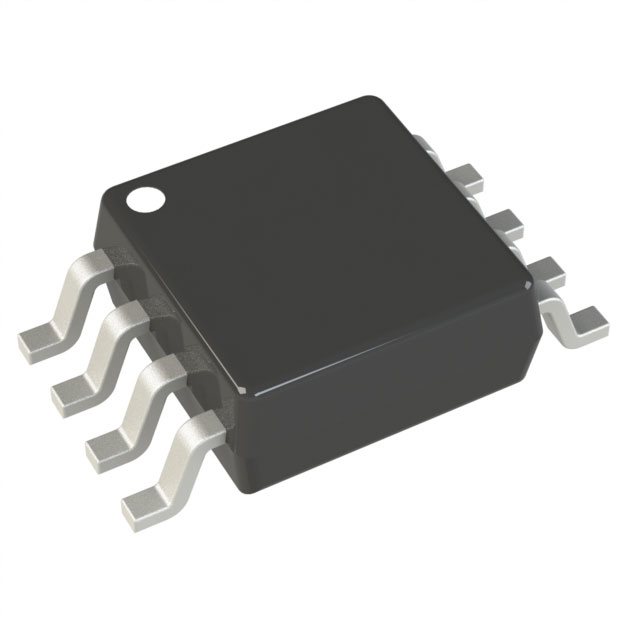

MX25L3236FM2I-08Q

Active

Macronix

IC FLASH 32MBIT SPI/QUAD 8SOP

Search across all available documentation for this part.

Active

Macronix

IC FLASH 32MBIT SPI/QUAD 8SOP

Technical Specifications

Parameters and characteristics for this part

Specification	MX25L3236FM2I-08Q

Access Time	6 ns
Clock Frequency	133 MHz
Memory Format	FLASH
Memory Interface	SPI - Quad I/O
Memory Organization [custom]	16, 32, 8
Memory Organization [custom]	4 M, 1 M, 2 M
Memory Size	32 Gbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SOIC
Package / Case [x]	0.209 "
Package / Case [y]	5.3 mm
Supplier Device Package	8-SOP
Technology	FLASH - NOR (SLC)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.65 V
Write Cycle Time - Word, Page [custom]	50 µs
Write Cycle Time - Word, Page [custom]	1.2 ms

IC FLASH 32MBIT SPI/QUAD 8SOP

Part	Supplier Device Package	Memory Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Technology	Memory Format	Memory Size	Clock Frequency	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Interface	Package / Case [y]	Package / Case	Package / Case [x]	Memory Organization [custom]	Memory Organization [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Access Time
Macronix MX25L3236FM2I-08Q	8-SOP	Non-Volatile	3.6 V	2.65 V	FLASH - NOR (SLC)	FLASH	32 Gbit	133 MHz	50 µs	1.2 ms	SPI - Quad I/O	5.3 mm	8-SOIC	0.209 "	8, 16, 32	1 M, 2 M, 4 M	85 °C	-40 °C	Surface Mount	6 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20608	$ 0.50

General part information

FLASH - NOR (SLC) Memory IC 32Mbit SPI - Quad I/O 133 MHz 6 ns 8-SOP
