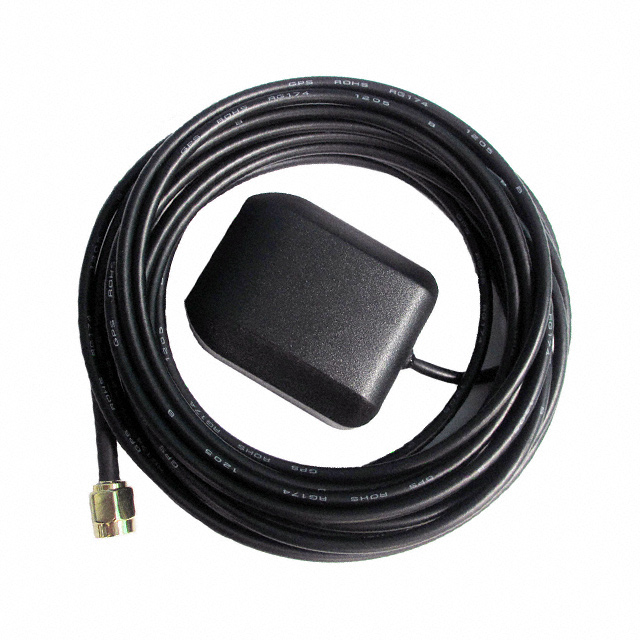

APAMP-112
ObsoleteAbracon LLC
RF ANT 1.575GHZ MOD SMA MALE ADH
APAMP-112
ObsoleteAbracon LLC
RF ANT 1.575GHZ MOD SMA MALE ADH
Description
General part information
APAMP-112
RF ANTENNA GPS Module SMA Male Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | APAMP-112 |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Features | 3m, Cable, LNA |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.576 GHz |
| Frequency Range (Min) | 1.574 GHz |
| Gain | 5 dBic |
| Height (Max) | 0.591 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination Type | SMA Male |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
