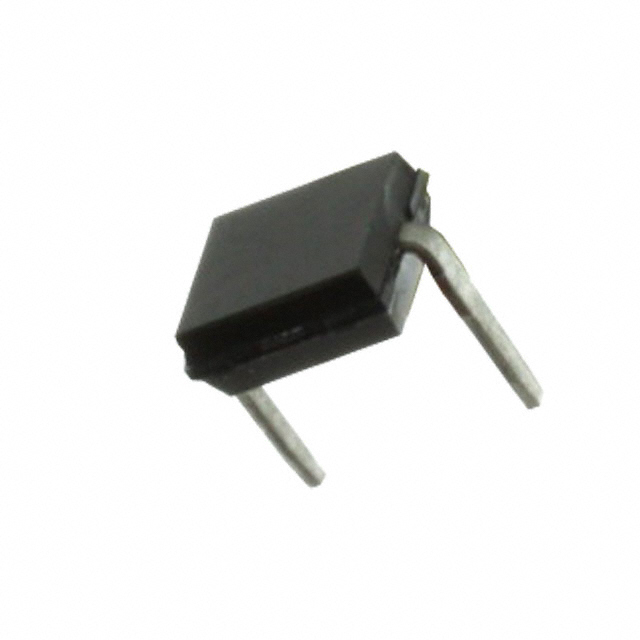

BP104

Active

Vishay Semiconductor Opto Division

SENSOR PHOTODIODE 950NM 2DIP

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

SENSOR PHOTODIODE 950NM 2DIP

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE 950NM 2DIP

Part	Diode Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Spectral Range [Max]	Spectral Range [Min]	Wavelength	Voltage - DC Reverse (Vr) (Max) [Max]	Viewing Angle	Active Area	Current - Dark (Typ)	Package / Case	Package / Case	Package / Case
Vishay Semiconductor Opto Division BP104	PIN	Through Hole	100 °C	-40 °C	1050 nm	870 nm	950 nm	60 V	130 °	7.5 mm˛	2 nA	0.2 in	2-DIP	5.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 950nm 130° 2-DIP (0.200", 5.10mm)
