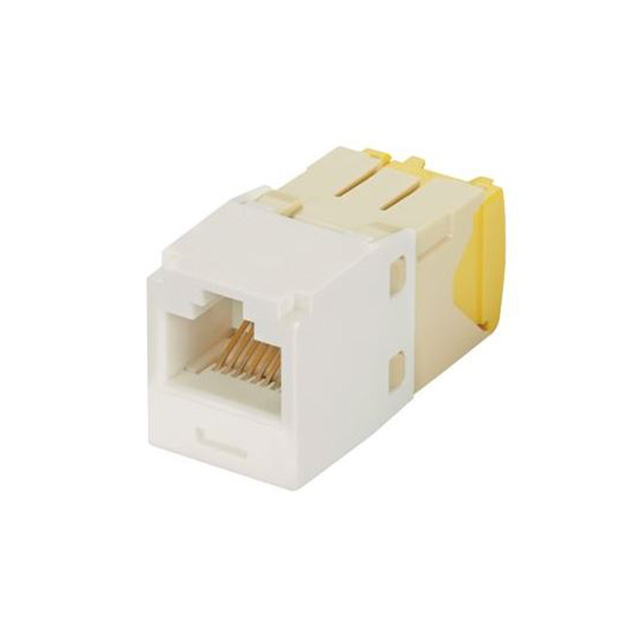

CJR5E88TGWH
ObsoletePanduit Corp
MINI-COM MODULE, CAT 5E, UTP, 8
CJR5E88TGWH
ObsoletePanduit Corp
MINI-COM MODULE, CAT 5E, UTP, 8
Description
General part information
CJR5E88TGWH
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat5e
Technical Specifications
Parameters and characteristics for this part
| Specification | CJR5E88TGWH |
|---|---|
| Connector Type | Jack, Ethernet, RJ45 |
| Contact Material | Phosphor Bronze |
| Housing Material | PC, Polycarbonate |
| LED Color | Does Not Contain LED |
| Mounting Type | Panel Mount |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -10 °C |
| Orientation | Straight |
| Ratings | Cat5e |
| Shielding | Unshielded |
| Tab Direction | Up |
| Termination | IDC |
