DS371356-CA
ObsoletePanasonic Electronic Components
CAP FILM 35UF 10% 370VAC RADIAL
DS371356-CA
ObsoletePanasonic Electronic Components
CAP FILM 35UF 10% 370VAC RADIAL
Description
General part information
DS371356-CA

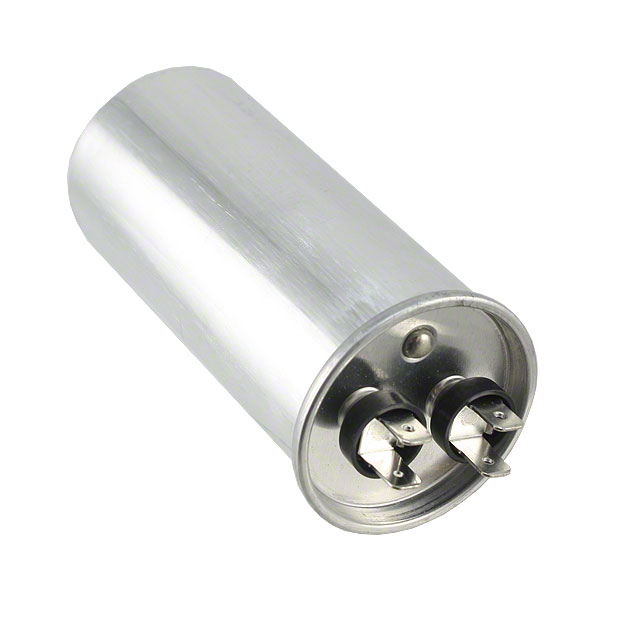

35 µF Film Capacitor 370V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | DS371356-CA |
|---|---|
| Applications | Motor Run |
| Capacitance | 35 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 4.016 in |
| Lead Spacing | 0.709 in |
| Mounting Type | Bracket, Chassis Mount, Requires Holder |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 1.772 in |
| Termination | Disconnect, Quick Connect |
| Tolerance | 10 % |
| Voltage Rating - AC | 370 V |
