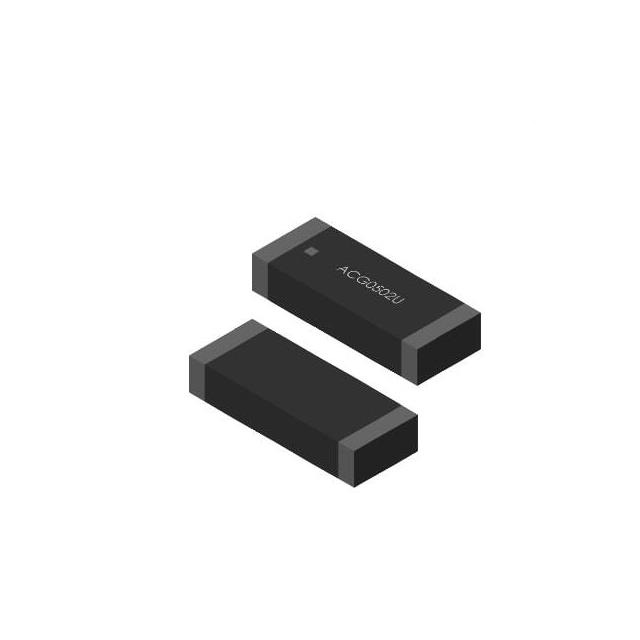

ACG0502U
ActiveAbracon LLC
UWB ANT 3.7GHZ- 4.2GHZ SMD CHIP
ACG0502U
ActiveAbracon LLC
UWB ANT 3.7GHZ- 4.2GHZ SMD CHIP
Description
General part information
ACG0502U
RF ANTENNA UWB Chip Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ACG0502U |
|---|---|
| Antenna Type | Chip |
| Applications | UWB |
| Features | Filter |
| Frequency (Center/Band) | 3.95 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 4.2 GHz |
| Frequency Range (Min) | 3.7 GHz |
| Height (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
