794406-1
ActiveTE Connectivity AMP Connectors

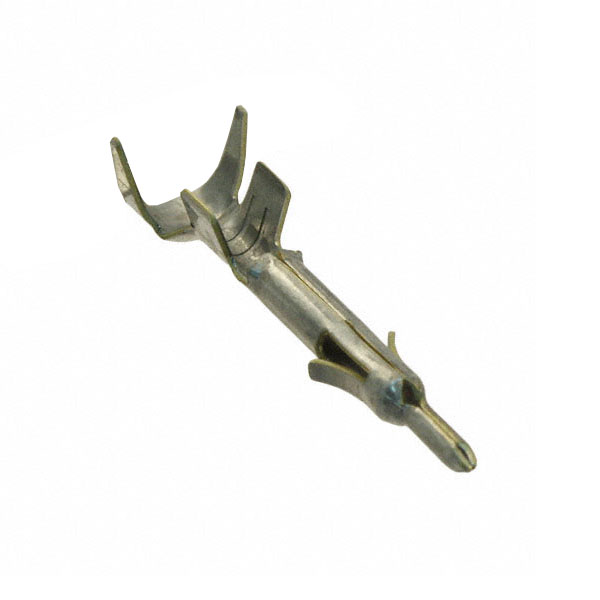

CONN PIN 16-20AWG TIN CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794406-1
ActiveTE Connectivity AMP Connectors
CONN PIN 16-20AWG TIN CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794406-1 | 794406 Series |
|---|---|---|
| Contact Finish | Tin | Gold, Tin |
| Contact Finish Thickness | - | 0.76 Ám |
| Contact Finish Thickness | - | 30 Áin |
| Contact Material | Brass | Brass |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Stamped | Power, Stamped, Stamped |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 16 AWG | 16 AWG |
794406 Series
CONN PIN 16-20AWG GOLD CRIMP
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material | Contact Finish | Type |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794406-3 | 0.76 Ám | 30 Áin | Crimp | Pin | 16 AWG | 20 AWG | Brass | Gold | Power, Stamped |
TE Connectivity AMP Connectors 1-794406-0 | 0.76 Ám | 30 Áin | Crimp | Pin | 16 AWG | 20 AWG | Brass | Gold | Stamped |
TE Connectivity AMP Connectors 794406-1 | Crimp | Pin | 16 AWG | 20 AWG | Brass | Tin | Stamped |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.15 | |
| 10 | $ 0.12 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.09 | |||
| Tape & Reel (TR) | 4500 | $ 0.08 | ||
| 9000 | $ 0.07 | |||
| 13500 | $ 0.06 | |||
| 31500 | $ 0.06 | |||
| 112500 | $ 0.05 | |||
Description
General part information
794406 Series
Pin Contact Tin Crimp 16-20 AWG Stamped
