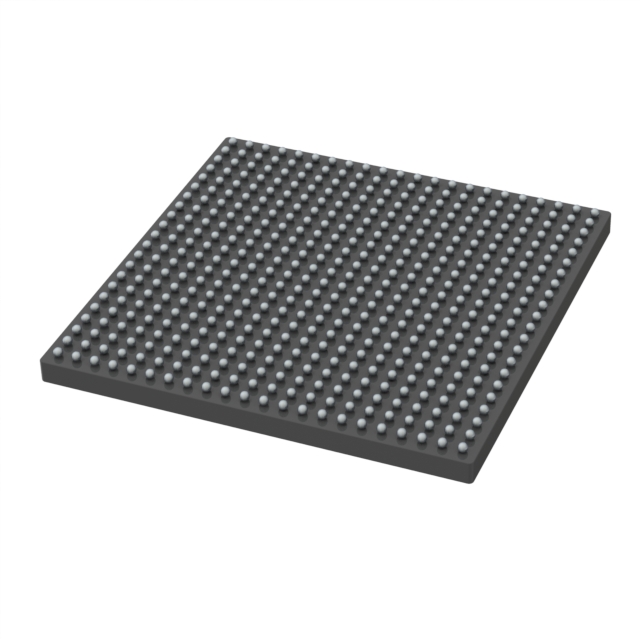

TI180J484I4

Active

Efinix, Inc.

FPGA TITAN 80GPIO 640DSP 484BGA

Search across all available documentation for this part.

Active

Efinix, Inc.

FPGA TITAN 80GPIO 640DSP 484BGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TI180J484I4	Ti180 Series

Contents	-	Power Supply, Cable(s), Accessories, Board(s)
For Use With/Related Products	-	Ti180M484
Interconnect System	-	FMC
Mounting Type	Surface Mount	Surface Mount
Number of I/O	80	80
Number of Logic Elements/Cells	176256	176256
Operating Temperature [Max]	100 °C	85 - 100 °C
Operating Temperature [Min]	-40 C	-40 - 0 C
Package / Case	484-LFBGA	484-LFBGA, 361-TFBGA
Platform	-	Titanium Ti180 M484 FPGA
Suggested Programming Environment	-	Efinity
Supplier Device Package	484-FBGA (18x18)	484-FBGA (18x18), 361-FBGA (13x13)
Total RAM Bits	13110000 Bits	13110000 Bits
Utilized IC / Part	-	Ti180M484
Voltage - Supply [Max]	0.98 V	0.98 V
Voltage - Supply [Min]	0.92 V	0.92 V

FPGA TITAN 80GPIO 640DSP 484BGA

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Number of I/O	Total RAM Bits	Number of Logic Elements/Cells	Interconnect System	Utilized IC / Part	Suggested Programming Environment	Contents	For Use With/Related Products	Platform
Efinix, Inc. TI180J484I4	100 °C	-40 C	Surface Mount	484-FBGA (18x18)	0.92 V	0.98 V	484-LFBGA	80	13110000 Bits	176256
Efinix, Inc. TI180J361I3	100 °C	-40 C	Surface Mount	361-FBGA (13x13)	0.92 V	0.98 V	361-TFBGA	80	13110000 Bits	176256
Efinix, Inc. TI180J361C4	85 °C	0 °C	Surface Mount	361-FBGA (13x13)	0.92 V	0.98 V	361-TFBGA	80	13110000 Bits	176256
Efinix, Inc. TI180M484-DK											FMC	Ti180M484	Efinity	Accessories, Board(s), Cable(s), Power Supply	Ti180M484	Titanium Ti180 M484 FPGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	840	$ 110.09

General part information

Titanium™ Field Programmable Gate Array (FPGA) IC 80 13110000 176256 484-LFBGA
