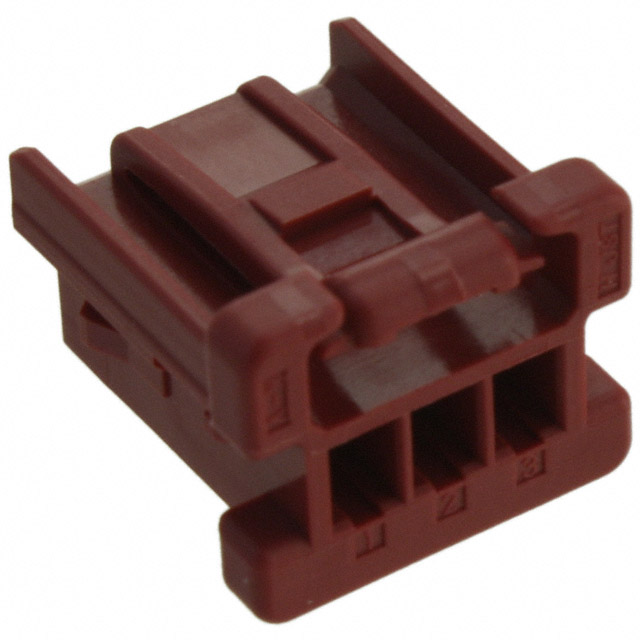

XMAP-03V-2-R(M8AM) - XMAP-03V-2-R

XMAP-03V-2-R(M8AM)

Active
JST Sales America Inc.

CONN PLUG HSG 3POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXMA SpecificationJST Prefix Suffix Chart+1
XMAP-03V-2-R(M8AM) - XMAP-03V-2-R

XMAP-03V-2-R(M8AM)

Active
JST Sales America Inc.

CONN PLUG HSG 3POS 2.50MM

Deep-Dive with AI

DocumentsXMA SpecificationJST Prefix Suffix Chart+1

Technical Specifications

Parameters and characteristics for this part

SpecificationXMAP-03V-2-R(M8AM)
ColorRed
Connector TypePlug
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Rows1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Pitch [x]0.098 in
Pitch [x]2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

XMAP-03V-2-R(M8AM)

3 Rectangular Connectors - Housings Plug Red 0.098" (2.50mm)
