A8GS-C1180

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	A8GS-C1180

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	cULus, EN, UL
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	27.7 mm
Panel Cutout Dimensions [y]	15.2 mm
Switch Function	On-Off
Termination Style	0.187 in
Termination Style	4.7 mm
Termination Style	Connector, Quick Connect
Voltage Rating - AC	125 V

Part	Actuator Marking	Voltage Rating - AC	Current Rating (Amps)	Electrical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mechanical Life	Color - Actuator/Cap	Switch Function	Termination Style	Termination Style	Termination Style	Mounting Type	Actuator Type	Approval Agency	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Circuit
Omron Electronics Inc-EMC Div A8GS-C1180	No Marking	125 V	16 A	10000 Cycles	15.2 mm	27.7 mm	30000 Steps	Black	On-Off	0.187 in	4.7 mm	Connector Quick Connect	Panel Mount Snap-In	Concave (Curved)	cULus EN UL	55 °C	-10 °C	DPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 11.80

General part information

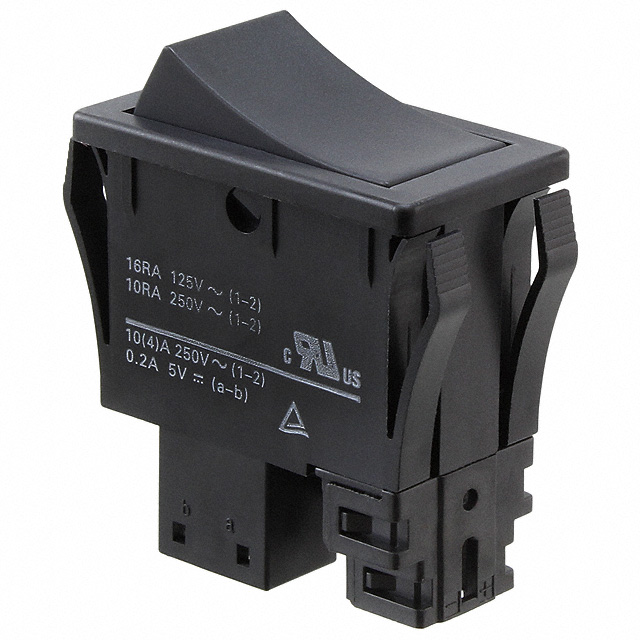

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
