DCPHD15FSC1

Active

Switchcraft Inc.

CONN D-SUB HD RCPT 15POS PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN D-SUB HD RCPT 15POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DCPHD15FSC1

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Thermoplastic
Features	Gasket
Flange Feature	Female Screwlock, Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

CONN D-SUB HD RCPT 15POS PNL MNT

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Ingress Protection	Flange Feature	Features	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Material Flammability Rating	Dielectric Material	Color	Number of Rows	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type	Current Rating (Amps)	Number of Positions
Switchcraft Inc. DCPHD15FSC1	DE, E	1	High Density	D-Sub, High Density	IP67 - Dust Tight, Waterproof	Female Screwlock, Mating Side	Gasket	Copper Alloy	85 °C	-55 °C	Gold	UL94 V-0	Thermoplastic	Black	3	Signal	22 AWG	26 AWG	Receptacle, Female Sockets	2 A	15

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 27.13

General part information

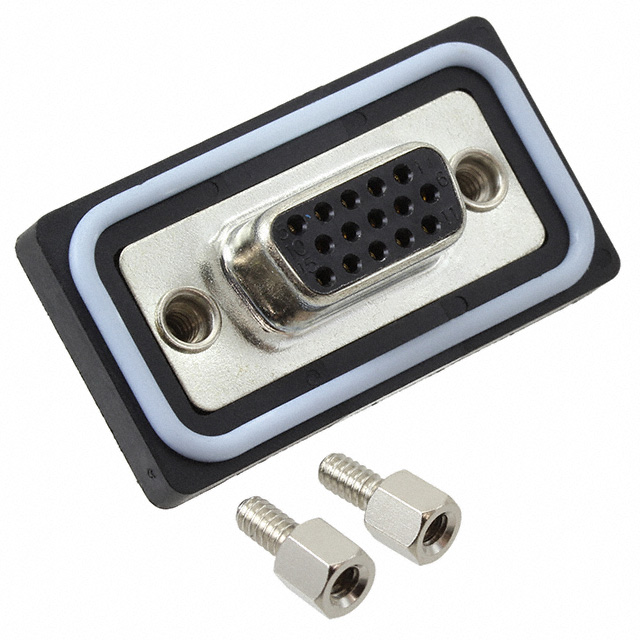

15 Position D-Sub, High Density Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available
