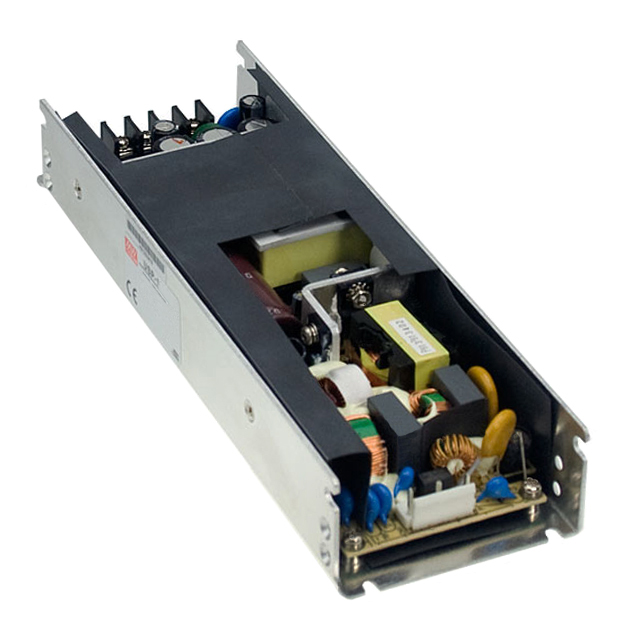

USP-150-12
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 12V 150W
USP-150-12
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 12V 150W
Description
General part information
USP-150-12
Open Frame AC DC Converters 1 Output 12V 90 ~ 295 VAC, 127 ~ 417 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | USP-150-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE |
| Current - Output 1 | 12.5 A |
| Efficiency | 91.5 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 150 W |
| Size / Dimension Height | 1.3 in |
| Size / Dimension Length | 8.46 in |
| Size / Dimension Width | 2.65 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 295 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 417 VDC |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12 V |
